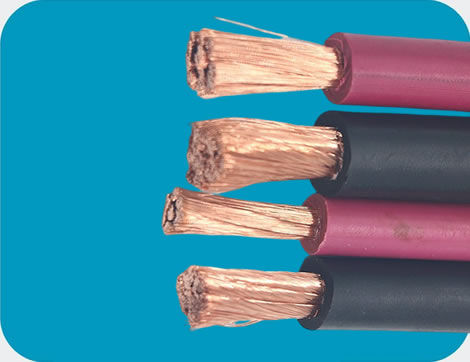

H01N2-D, H01N2-E, Rubber Insulated Sheathed Arc Welding Flexible Power Cables

European VDE and TUV certified H01N2-D and H01N2-E rubber insulated arc welding flexible cables, manufactured to DIN EN 50525-2-82 and EN 50525-2-82 standards. Rated 450V/750V at 60°C, available in single core configuration with conductor sizes from 10mm² to 95mm². These welding cables are specifically designed for arc welding applications, offering excellent flexibility, heat resistance, oil resistance and durable performance under heavy-duty welding conditions. Ideal for welding machines, welding torches, industrial welding equipment and construction sites. VDE and TUV certified with RoHS, REACH and PAHS compliant materials, customizable lengths available.

No.of Core:1 Core

Electrical Voltage:450V/750V

Temperature:60°C

Approvals:VDE, TUV Certified

Power Cable Standards :DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011

Our H01N2-D, H01N2-E Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for H01N2-D, H01N2-E, We are your best choice.

Categories: Europe VDE Rubber Power Cables

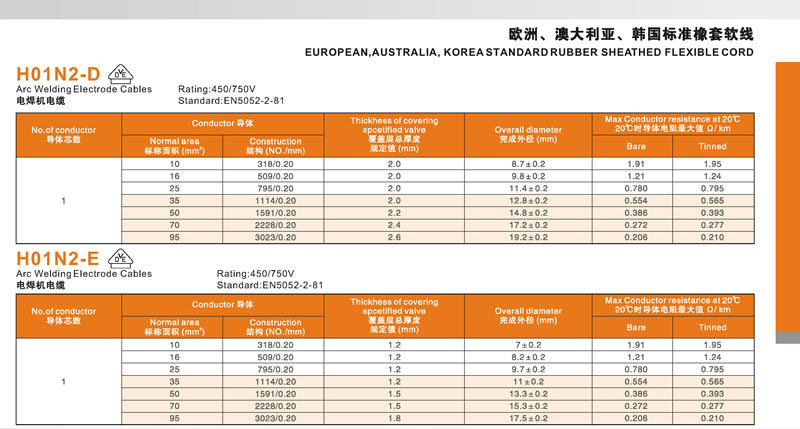

H01N2-D, H01N2-E Available Cord / Cables Wire Styles

Cord Type	Gauge/Sq.mm
H01N2-D	1x10mm², 1x16mm², 1x25mm², 1x35mm², 1x50mm², 1x70mm², 1x95mm²
H01N2-E	1x10mm², 1x16mm², 1x25mm², 1x35mm², 1x50mm², 1x70mm², 1x95mm²

This cable can also be supplied in other lengths, colors and jacket compounds. See how to customize a power cord.

Product Description of H01N2-D, H01N2-E


Number of Poles and Wires:	1 Core
Power Cables Standard:	DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011
Rated Voltage:	450V/750V
Rated Temperature:	60°C
Certified:	VDE, TUV
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	Rubber
Core Structure:	Cores twisted together
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Country of Origin:	Made In China
Packing:	Standard Export Carton

Specifications of Europe VDE Rubber Power Cables:

H01N2-D, H01N2-E Wire Styles, Rubber Insulated Sheathed Arc Welding Flexible Power Cables

Europe VDE Rubber Power Cables

More details of H01N2-D, H01N2-E for reference:

H01N2-D, H01N2-E of Europe VDE Rubber Power Cables

Frequently Asked Questions

Common questions about this flexible power cable

H01N2-D is a rubber insulated arc welding flexible cable built to DIN EN 50525-2-82, EN 50525-2-82, rated 450V/750V, available in 1 core with conductors of 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm². It is used for welding machines and electrode holders (the flexible secondary welding lead).

It is manufactured to DIN EN 50525-2-82, EN 50525-2-82 and supplied with VDE, TUV certification; the relevant harmonised/regional designation and test reports are available. Confirm the exact approval (e.g. UL, VDE, PSE or SAA) for the destination market.

Conductor sizes are 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², in 1 core. Larger cross-section reduces voltage drop and heating on longer or higher-current runs.

Rubber (e.g. EPR/elastomer, H07RN-F/SOOW types) stays flexible in the cold, resists oil, abrasion and weather, and suits outdoor, industrial and site use; PVC is smoother and lower cost for indoor appliances. Use the water-resistant grade for pumps and wet locations.
