AWM 2464, PVC Jacketed Multi-Conductor Appliance Wiring Material

UL AWM style 2464 is the multi-conductor PVC jacketed cable that has become the standard control, signal and low-voltage power cable inside and between electronic equipment. Two or more insulated singles are laid parallel or twisted, in flat, oval or round form, with optional fillers, a barrier layer, a shield or a braid, all closed in an extruded PVC jacket of 30 mils minimum average on cables up to 0.700 inch. The rating is 80°C and 300Vac with a cable flame requirement. It is ordered as 2, 3, 4, 6 or more cores, shielded or unshielded, in overall diameters to the drawing, with drain wire, foil, spiral or braided shields where the signal needs it.

No.of Core:2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores

Electrical Voltage:300V

Temperature:80°C

Approvels:UL, cUL Certified

Power Cable Standards :UL 758

Our AWM 2464 Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for AWM 2464, We are your best choice.

Categories: American UL AWM Power Cables

AWM 2464 Available Cord / Cables Wire Styles

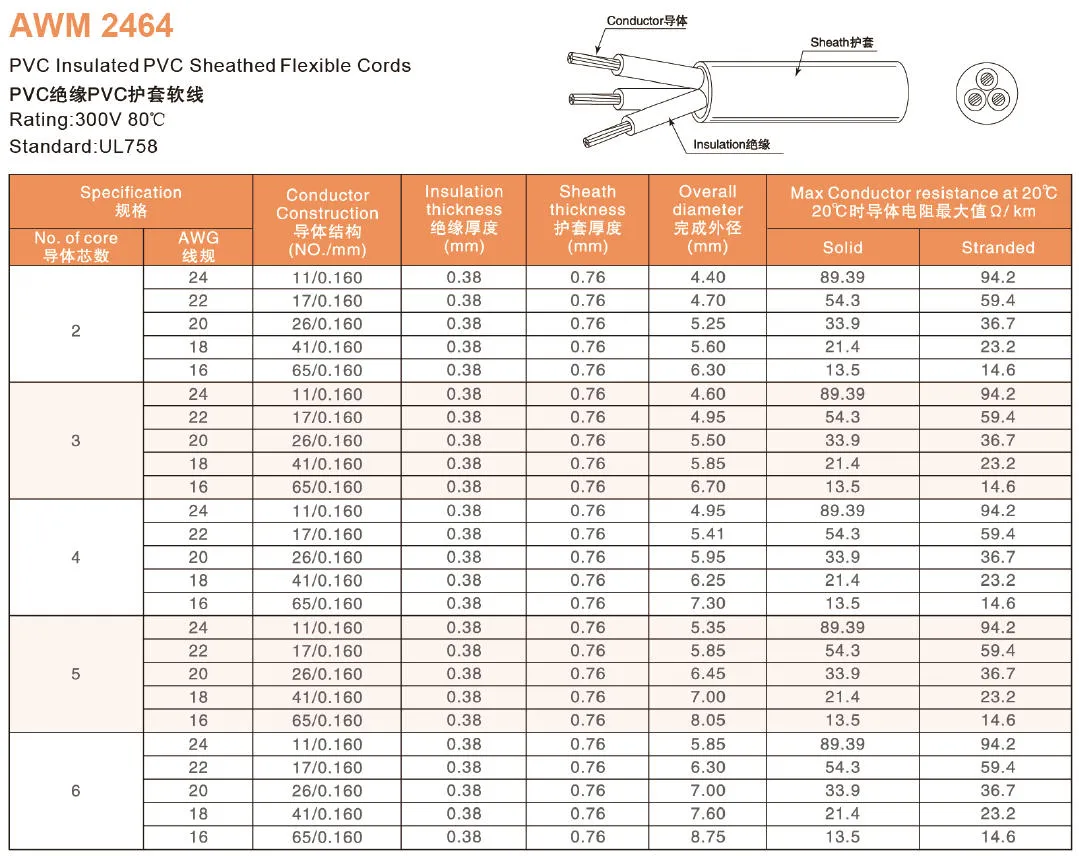

PVC Insulated PVC Sheathed Flexible Cords to UL 758. Per-core construction, nominal insulation and jacket thickness, finished diameter and maximum conductor resistance at 20°C by core count and AWG.

Cores	AWG	Conductor, stranded (NO./mm)	Insulation (mm)	Jacket (mm)	Overall diameter (mm)	Max resistance 20°C (Ω/km)
2	24	11/0.160	0.38	0.76	4.40	94.2
2	22	17/0.160	0.38	0.76	4.70	59.4
2	20	26/0.160	0.38	0.76	5.25	36.7
2	18	41/0.160	0.38	0.76	5.60	23.2
2	16	65/0.160	0.38	0.76	6.30	14.6
3	24	11/0.160	0.38	0.76	4.60	94.2
3	22	17/0.160	0.38	0.76	4.95	59.4
3	20	26/0.160	0.38	0.76	5.50	36.7
3	18	41/0.160	0.38	0.76	5.85	23.2
3	16	65/0.160	0.38	0.76	6.70	14.6
4	24	11/0.160	0.38	0.76	4.95	94.2
4	22	17/0.160	0.38	0.76	5.41	59.4
4	20	26/0.160	0.38	0.76	5.95	36.7
4	18	41/0.160	0.38	0.76	6.25	23.2
4	16	65/0.160	0.38	0.76	7.30	14.6
5	24	11/0.160	0.38	0.76	5.35	94.2
5	22	17/0.160	0.38	0.76	5.85	59.4
5	20	26/0.160	0.38	0.76	6.45	36.7
5	18	41/0.160	0.38	0.76	7.00	23.2
5	16	65/0.160	0.38	0.76	8.05	14.6
6	24	11/0.160	0.38	0.76	5.85	94.2
6	22	17/0.160	0.38	0.76	6.30	59.4
6	20	26/0.160	0.38	0.76	7.00	36.7
6	18	41/0.160	0.38	0.76	7.60	23.2
6	16	65/0.160	0.38	0.76	8.75	14.6

This cable can also be supplied in other lengths, colors and jacket compounds. See how to customize a power cord.

Product Description of AWM 2464


Number of Poles and Wires:	2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores
Power Cables Standard:	UL 758
Rated Voltage:	300V
Rated Temperature:	80°C
Certified:	UL, cUL
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC
Core Structure:	Cores twisted together
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Country of Origin:	Made In China
Packing:	Standard Export Carton

Specifications of American UL AWM Power Cables:

American UL AWM Power Cables

More details of AWM 2464 for reference:

AWM 2464 of American UL AWM Power Cables

Frequently Asked Questions

Common questions about this flexible power cable

The internal wiring or external interconnection of electronic equipment: control, signal, audio and low voltage power runs between boards, sub-assemblies and boxes. Two or more insulated conductors are laid parallel or twisted inside an extruded PVC jacket, with fillers, a barrier, a shield or a braid as needed.

80°C and 300Vac with a cable flame requirement. The jacket wall depends on the diameter under the jacket: 30 mils minimum average up to 0.700 inch, rising through 45, 60, 80 and 110 mils as the cable gets larger.

Yes. Foil with a drain wire, spiral and braided shields are all available, along with unshielded constructions. Twisted pairs and groups of twisted conductors can also be cabled together, and the lay and the fillers are set by the drawing.

Two as a minimum, and the construction is written around the assembly rather than a fixed count, so 3, 4, 6, 8 and larger core counts are all built to order with the same jacket and rating rules. Mixed conductor sizes are permitted on the style page.
