H07RN-F, Rubber Insulated Sheathed Flexible Power Cables

European VDE, TUV, SAA and KC certified H07RN-F heavy duty rubber insulated sheathed flexible cables, manufactured to DIN EN 50525-2-82, EN 50525-2-82 and AS/NZS 60245 standards. Rated 450V/750V at 60°C, available in 1-core to 6-core configurations with conductor sizes from 1.0mm² to 6.0mm². These heavy duty rubber cables offer superior flexibility, weather resistance, oil resistance, abrasion resistance and durable performance for demanding industrial and outdoor applications. Ideal for construction sites, industrial machinery, stage lighting, power tools and portable equipment. Multi-certified with RoHS, REACH and PAHS compliant materials, OEM customization available.

No.of Core:1 Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores

Electrical Voltage:450V/750V

Temperature:60°C

Approvals:VDE, TUV, KC, SAA Certified

Power Cable Standards :DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011, AS/NZS 60245.4

Our H07RN-F Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for H07RN-F, We are your best choice.

Categories: Europe VDE Rubber Power Cables

H07RN-F Available Cord / Cables Wire Styles

Cord Type	Gauge/Sq.mm
H07RN-F	1x1.5mm², 1x2.5mm², 1x4.0mm², 1x6.0mm²
	2x1.0mm², 2x1.5mm², 2x2.5mm², 2x4.0mm², 2x6.0mm²
	3x1.0mm², 3x1.5mm², 3x2.5mm², 3x4.0mm², 3x6.0mm²
	4x1.0mm², 4x1.5mm², 4x2.5mm², 4x4.0mm², 4x6.0mm²
	5x1.0mm², 5x1.5mm², 5x2.5mm², 5x4.0mm², 5x6.0mm²
	6x1.0mm², 6x1.5mm², 6x2.5mm², 6x4.0mm², 6x6.0mm²

This cable can also be supplied in other lengths, colors and jacket compounds. See how to customize a power cord.

Product Description of H07RN-F


Number of Poles and Wires:	1 Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores, 6 Cores
Power Cables Standard:	DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011, AS/NZS 60245.4
Rated Voltage:	450V/750V
Rated Temperature:	60°C
Certified:	VDE, TUV, KC, SAA
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	Rubber
Core Structure:	Cores twisted together
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Country of Origin:	Made In China
Packing:	Standard Export Carton

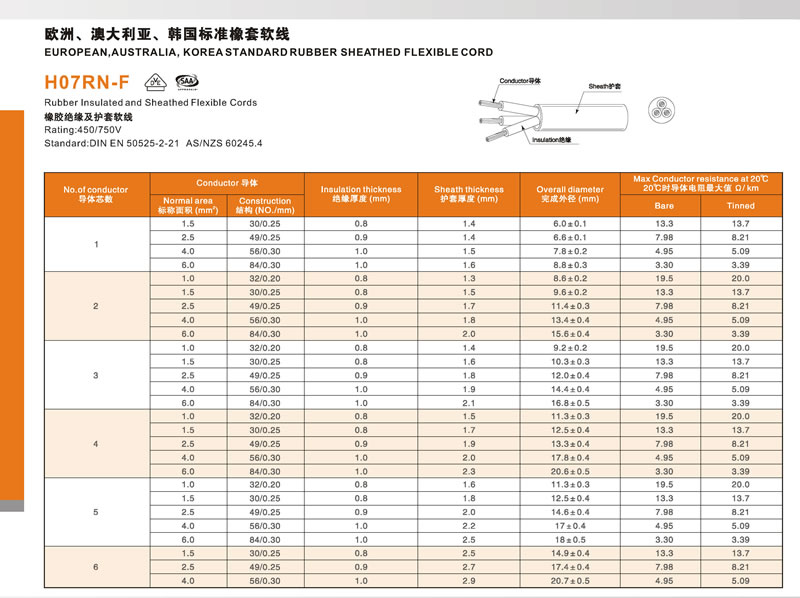

Specifications of Europe VDE Rubber Power Cables:

H07RN-F Wire Styles, Rubber Insulated Sheathed Flexible Power Cables

Europe VDE Rubber Power Cables

More details of H07RN-F for reference:

H07RN-F of Europe VDE Rubber Power Cables

Frequently Asked Questions

Common questions about this flexible power cable

H07RN-F is a heavy duty rubber insulated sheathed flexible cable built to DIN EN 50525-2-82, EN 50525-2-82, AS/NZS 60245, rated 450V/750V, available in 1 core, 2 cores, 3 cores, 4 cores, 5 cores, 6 cores with conductors of 1.0mm², 1.5mm², 2.5mm², 4.0mm², 6.0mm². It is used for European appliances, light industrial equipment and flexible power connections.

It is manufactured to DIN EN 50525-2-82, EN 50525-2-82, AS/NZS 60245 and supplied with VDE, TUV, KC, SAA certification; the relevant harmonised/regional designation and test reports are available. Confirm the exact approval (e.g. UL, VDE, PSE or SAA) for the destination market.

Conductor sizes are 1.0mm², 1.5mm², 2.5mm², 4.0mm², 6.0mm², in 1 core, 2 cores, 3 cores, 4 cores, 5 cores, 6 cores. Larger cross-section reduces voltage drop and heating on longer or higher-current runs.

Rubber (e.g. EPR/elastomer, H07RN-F/SOOW types) stays flexible in the cold, resists oil, abrasion and weather, and suits outdoor, industrial and site use; PVC is smoother and lower cost for indoor appliances. Use the water-resistant grade for pumps and wet locations.
