American IP44 Waterproof Power Cords

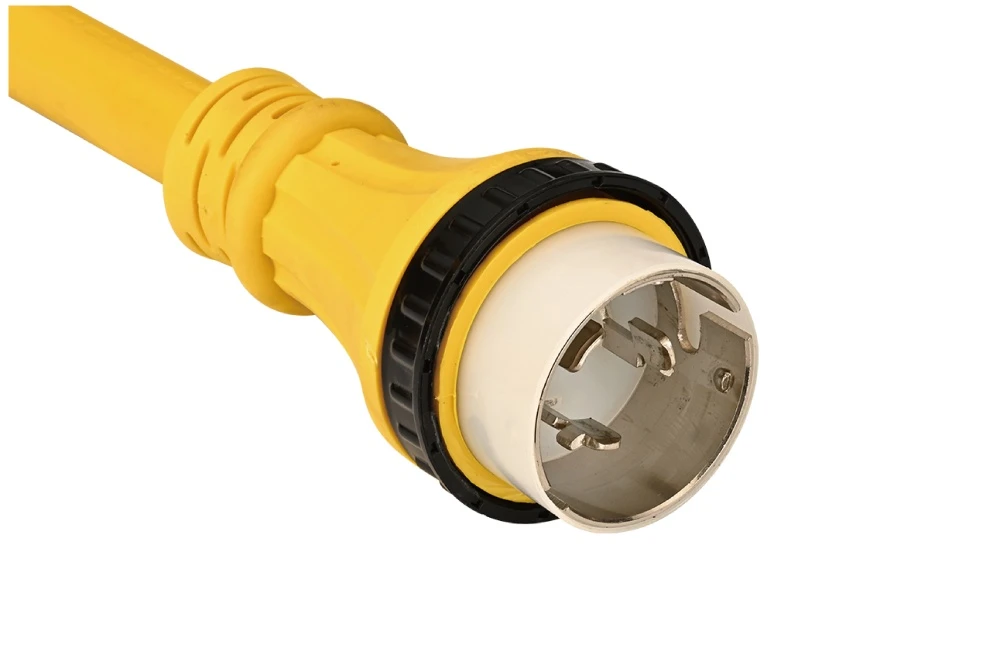

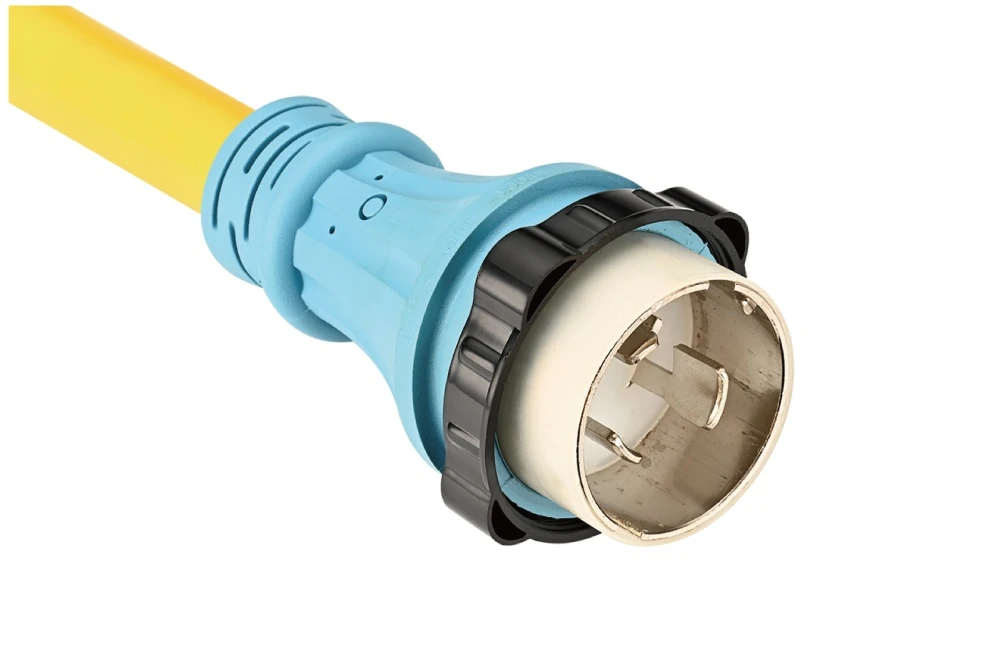

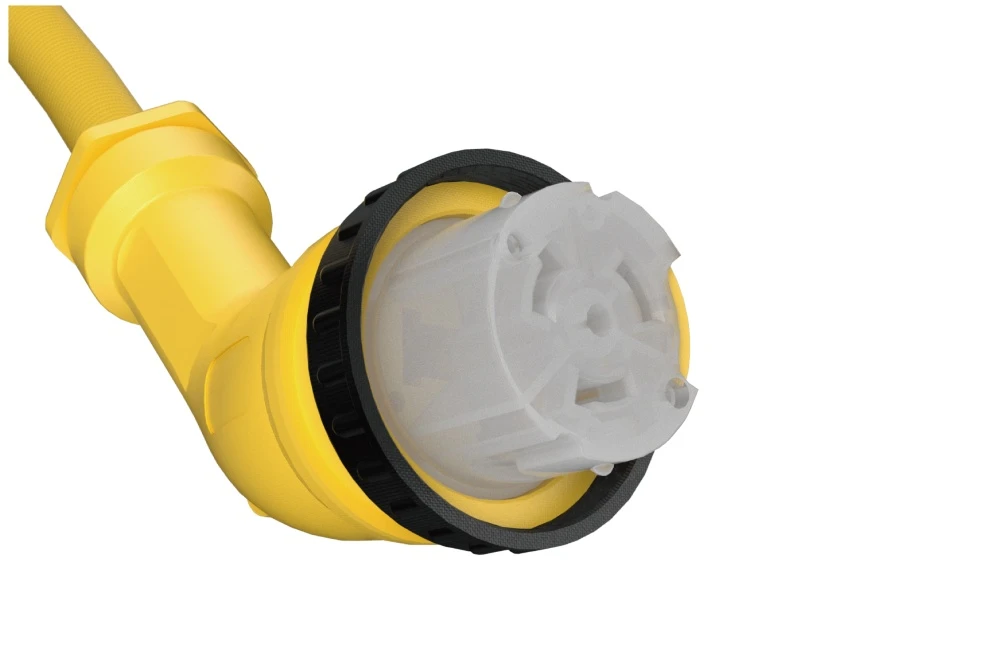

Our full range of American IP44 waterproof power cords is built to strict NEMA standards, providing reliable splash-proof and dust-resistant connectivity for North American outdoor and damp-location applications. Rated 15A, 20A, 30A, 50A at 125V/250V 277V AC, these weatherproof power cords feature heavy-duty weather-resistant rubber or PVC jackets, nickel-plated brass blades and fully sealed structures. All units carry UL/cUL certifications, comply with RoHS, REACH, PAHS, and Prop 65 rules, and fit garden tools, outdoor lighting, RV, EV, Yacht Shore, dryer, welder, construction equipment and industrial wet sites. Custom cable lengths and wire gauges are available to meet specific project needs.
Power Cord & Power Connectors Manufacturer With RoHS, Reach, PAHs Compliant.
Frequently Asked Questions
Common questions about American NEMA power cords
Per IEC 60529, IP44 means the connector is protected against solid objects larger than 1 mm, such as tools, wires and most insects, and against splashing water from any direction. It is splash- and weather-resistant for damp and sheltered outdoor use, but it is not dust-tight and is not rated for immersion, pressure washing or standing water.
IP44 is intended for covered or temporary outdoor locations such as patios, job sites and holiday lighting where it is shielded from direct driving rain. Full IP44 protection is achieved only when the plug and matching IP44 connector are fully mated and any hinged cover is closed. For permanent exposed or washdown locations, step up to IP65 or IP67.

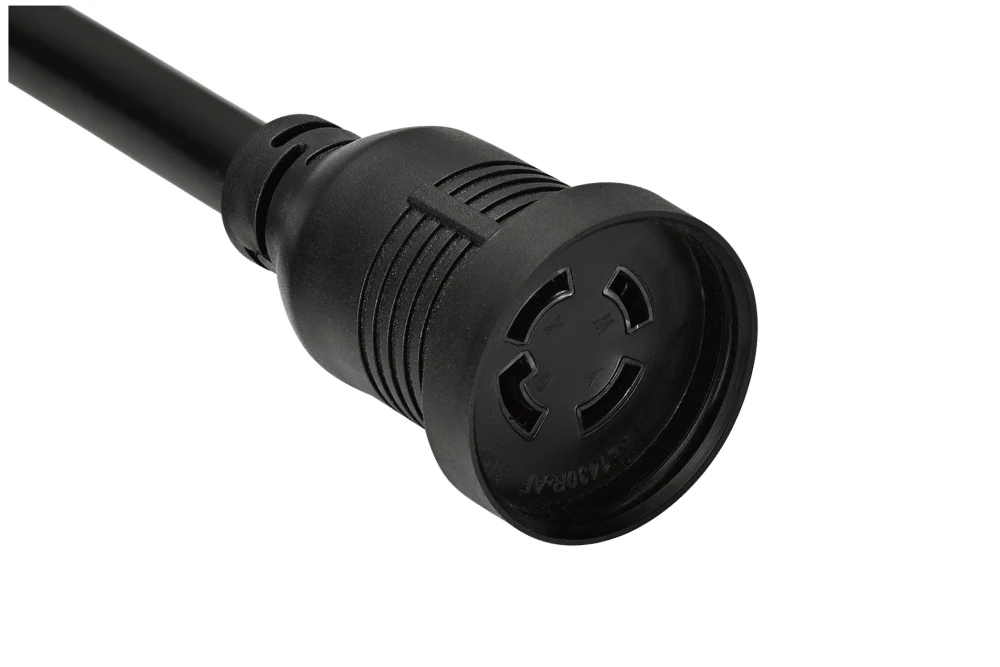

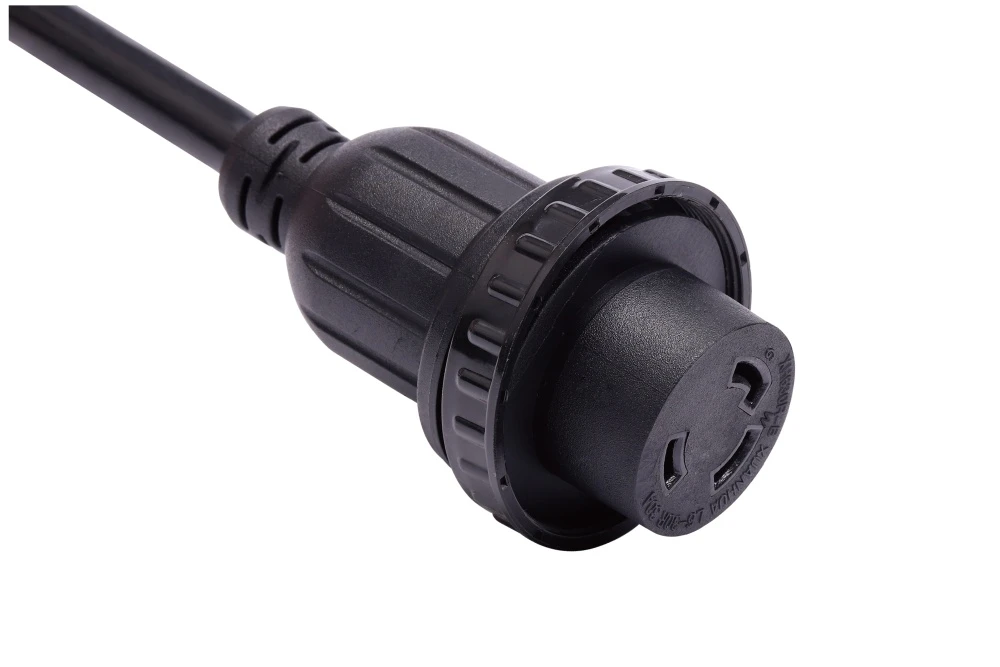

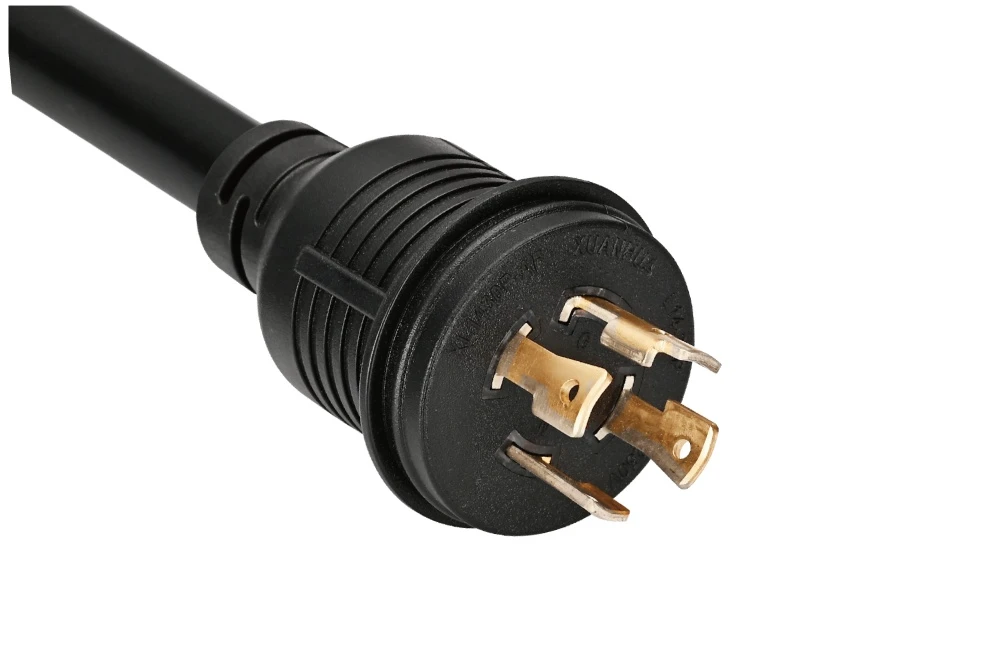

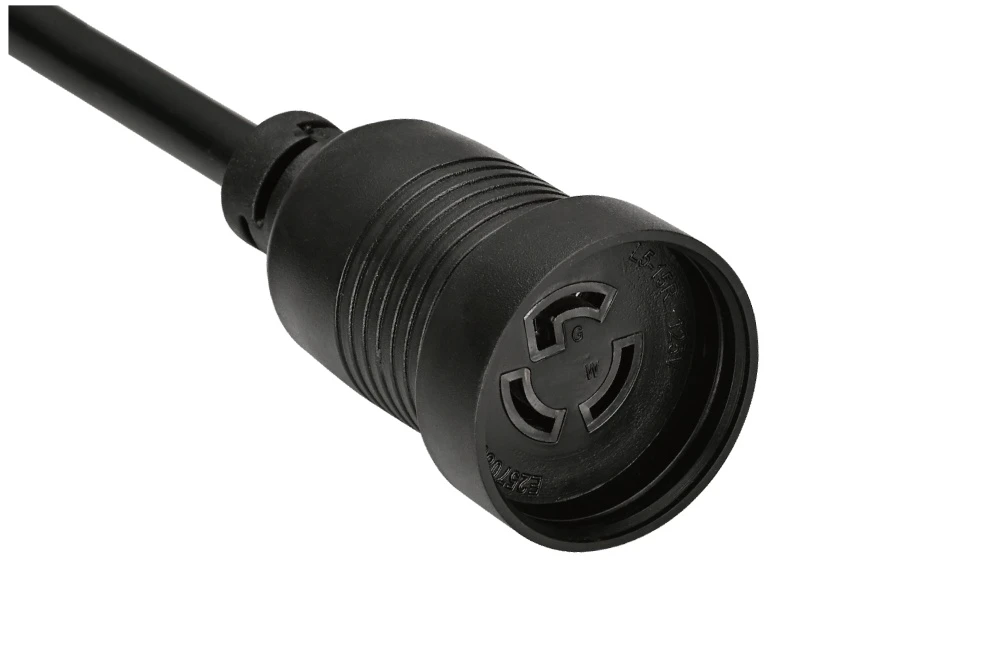

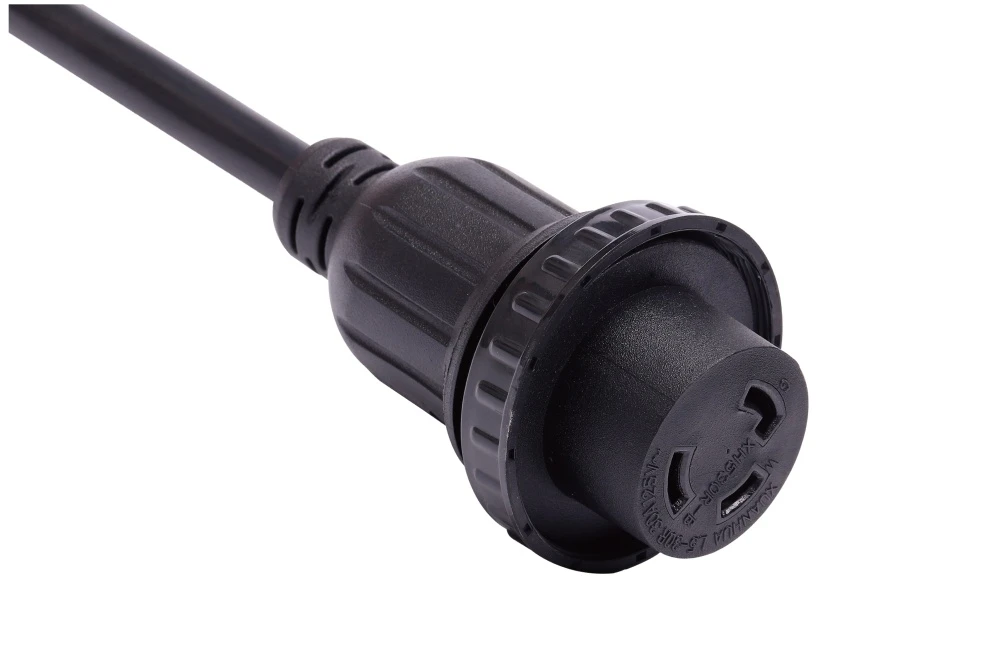

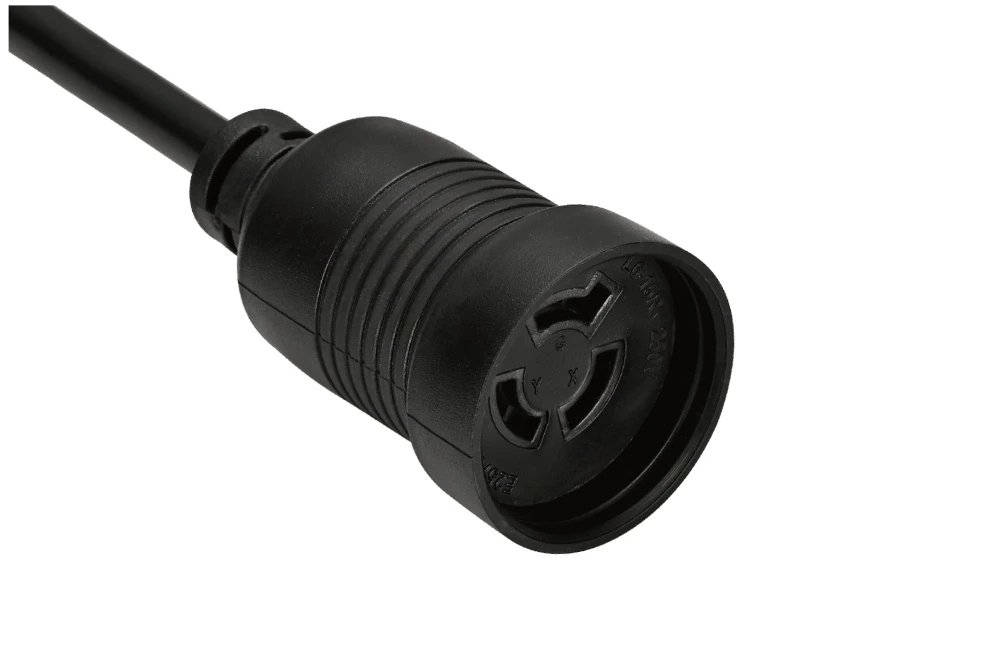

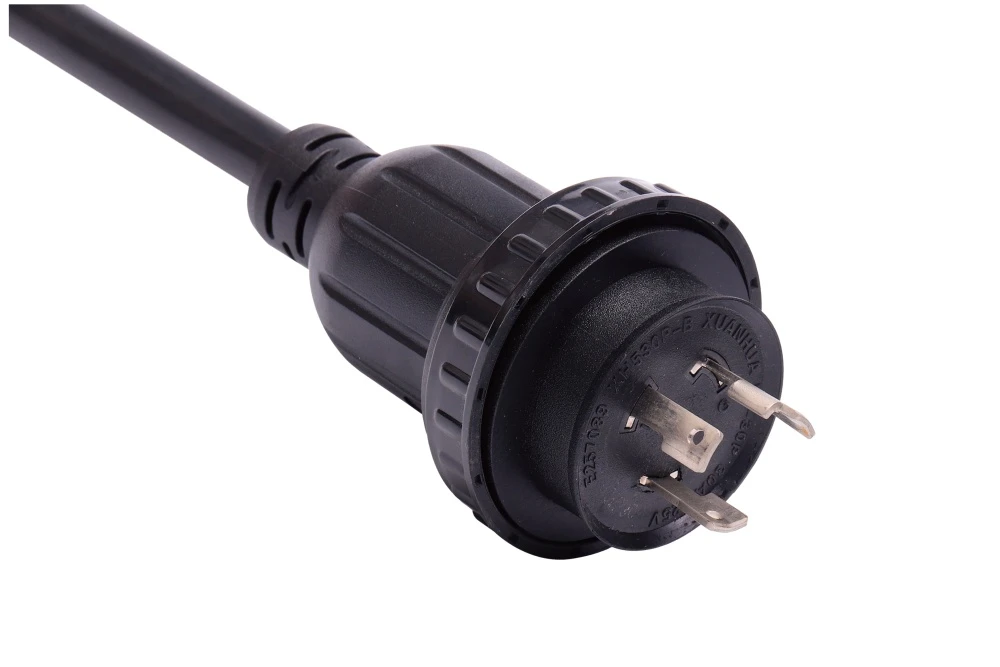

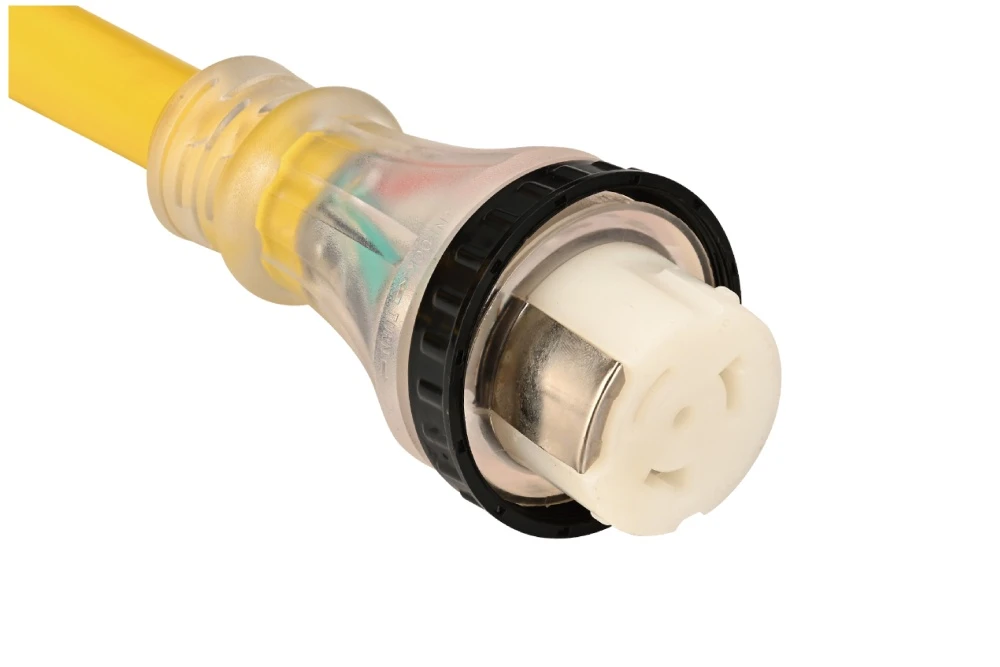

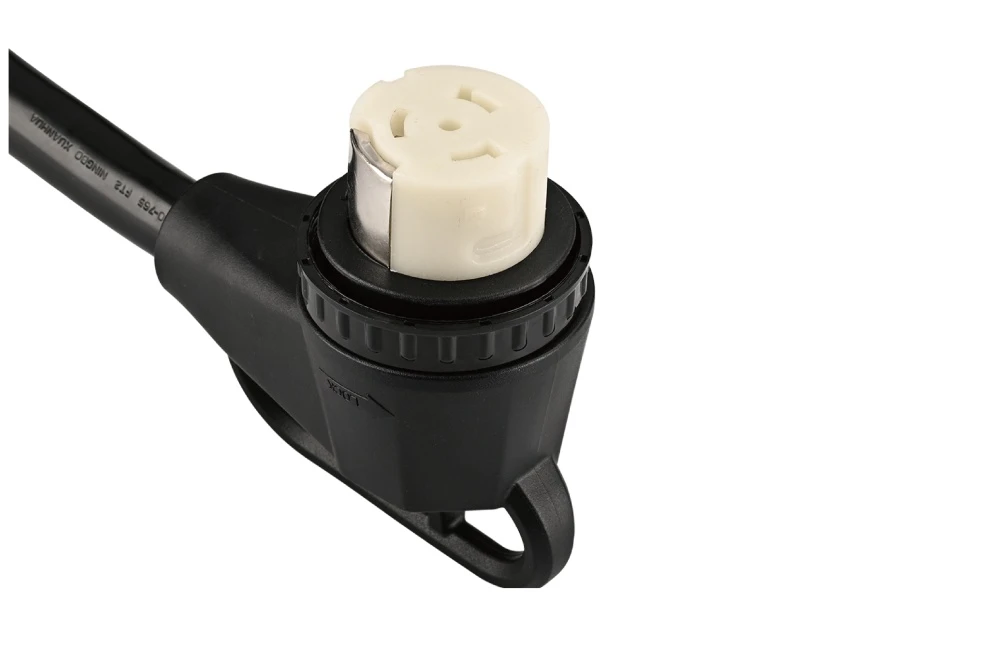

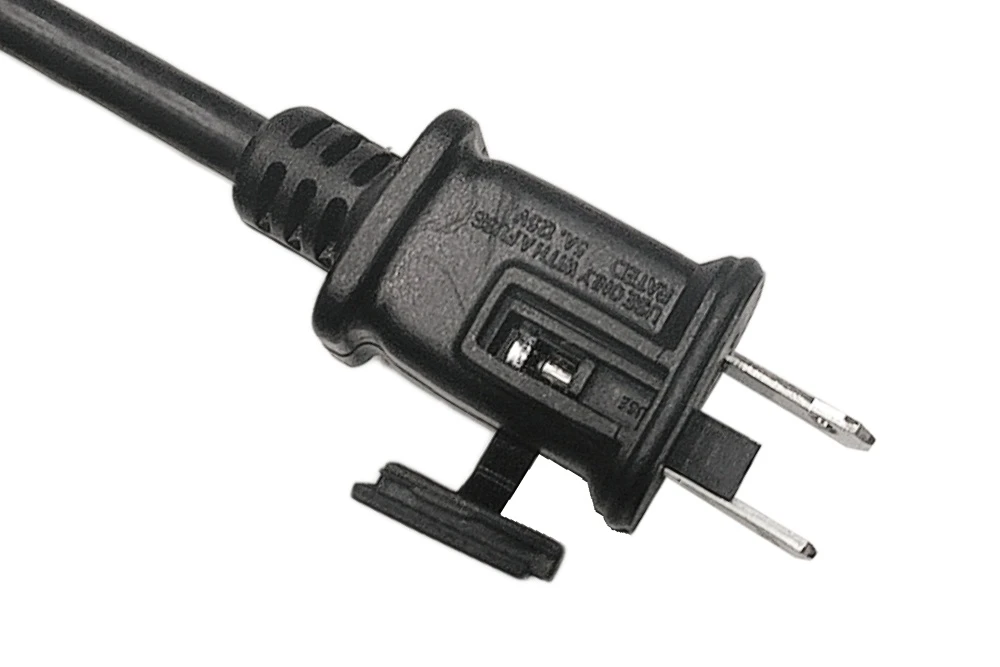

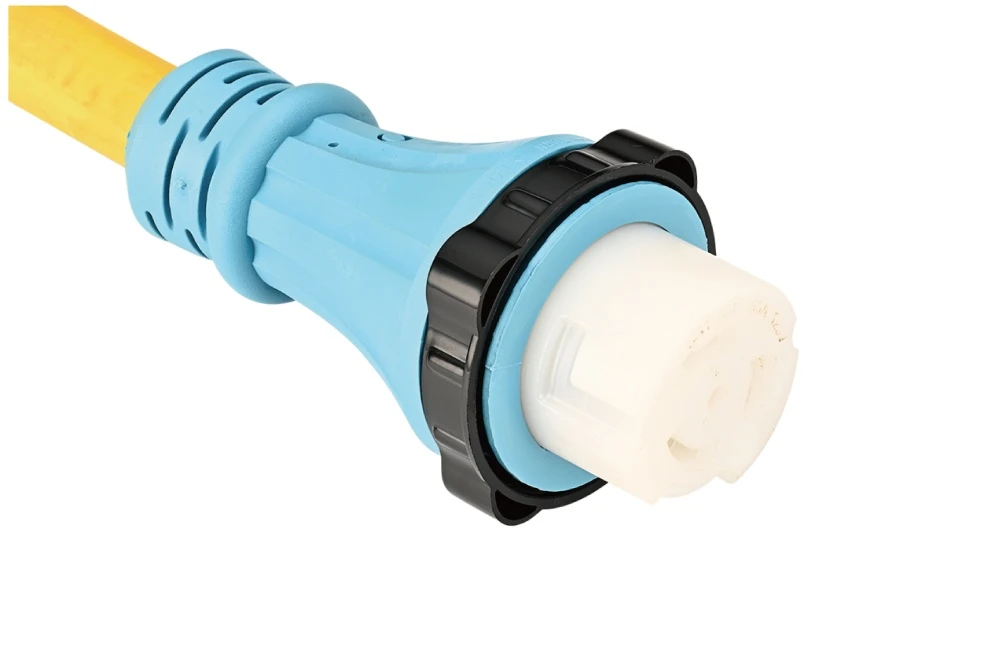

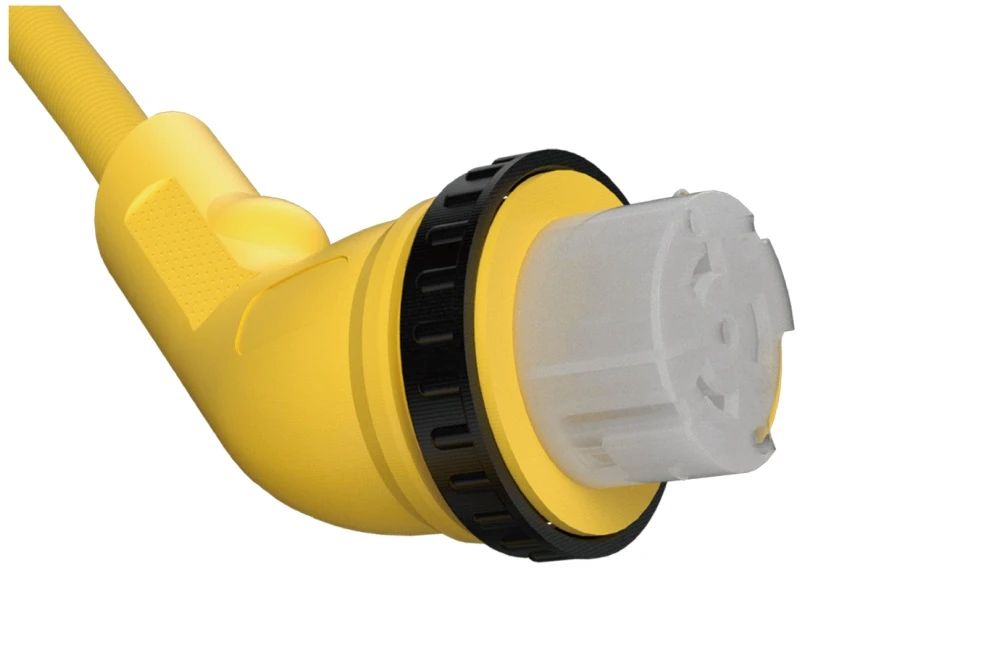

We mold sealed IP44 plugs and connectors across NEMA 1-15, 5-15, 5-20, 6-15 and 6-20 at 15A and 20A for 125V and 250V, plus selected 30A/50A and locking versions, with fused, right-angle and strain-relief options and weather-resistant SJTW or SOOW jackets.
IP44 resists objects over 1 mm and splashes; IP65 is dust-tight and withstands low-pressure water jets; IP67 is dust-tight and can be temporarily immersed. Choose the lowest rating that safely matches the real exposure, and make the rating of the plug and the socket match.
Yes, we customize length, gauge, jacket color, NEMA or locking ends and can add gaskets, fused plugs and hinged covers to your specification. Samples take 7 to 15 days, typical MOQ is 200 to 1,000 pieces, and production runs 15 to 20 workdays.
