AWM 22094

AWM 22094, PVC Jacketed Multi-Conductor Appliance Wiring Material, Sunlight Resistant

UL AWM style 22094 is the newest of the group, issued in 2017, and it is the one to specify when a multi-conductor AWM cable has to work outdoors. Three or more conductors are laid parallel or cabled in flat, oval or round form, with optional shielding, inside an extruded sunlight resistant PVC jacket proven for 720 hours of exposure; the temperature window is 60°C, 80°C, 90°C or 105°C with a -40°C cold end, at 300 or 600Vac. Conductor sizes run 18AWG to 2AWG, with insulation walls of 30, 45 or 60 mils by size band and jacket walls from 60 to 110 mils by cable diameter. It is used for internal and external wiring of equipment that stands outdoors.
No.of Core:2 Cores, 3 Cores, 4 Cores
Electrical Voltage:300V, 600V
Temperature:60°C, 80°C, 90°C, 105°C, -40°C
Approvels:UL, cUL Certified
Power Cable Standards :UL 758

Our AWM 22094 Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for AWM 22094, We are your best choice.

Categories: American UL AWM Power Cables

AWM 22094 Available Cord / Cables Wire Styles

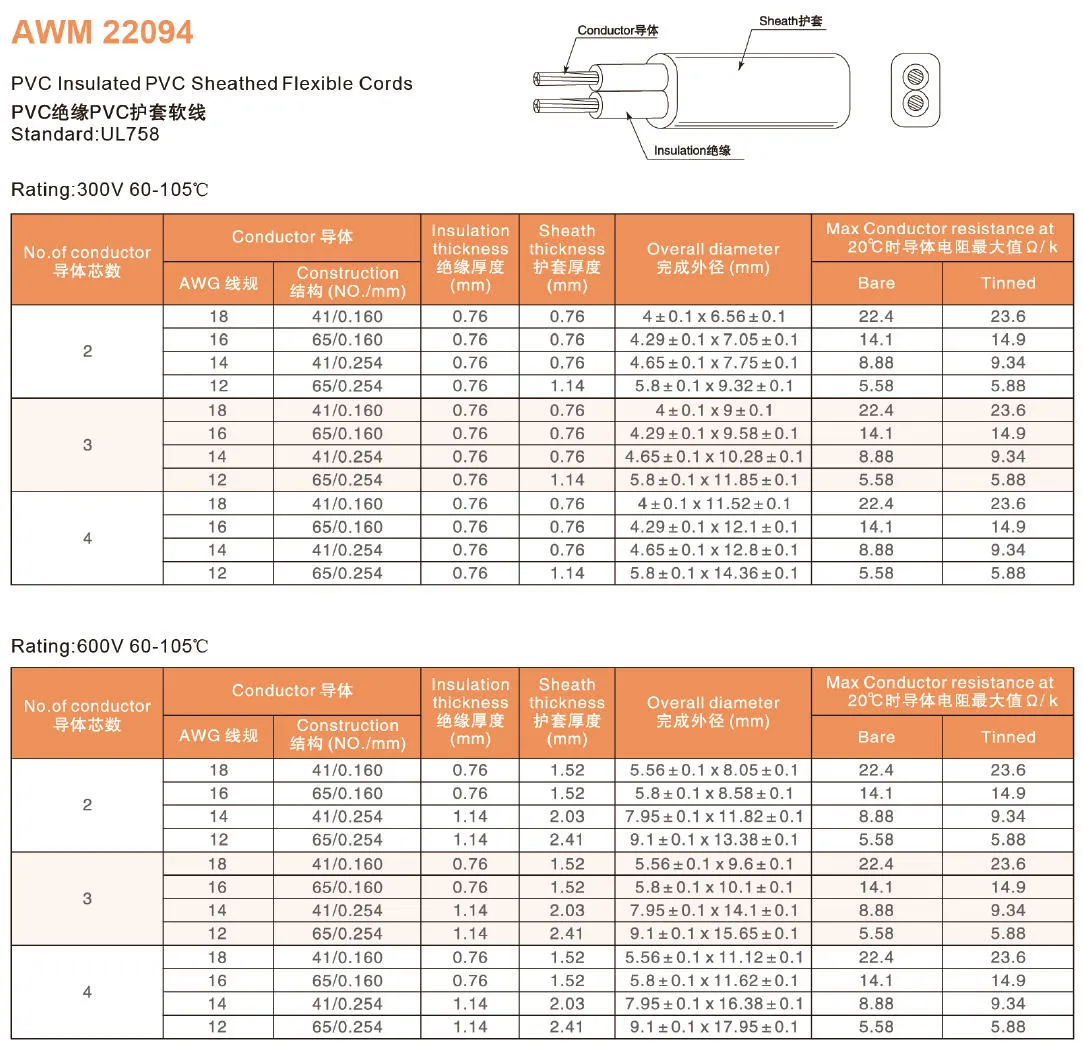

PVC Insulated PVC Sheathed Flexible Cords to UL 758. Flat parallel construction: conductor construction (NO./mm), nominal insulation and sheath thickness, finished diameter (width x height) and maximum conductor resistance at 20°C by voltage rating, core count and AWG.

Rating Cores AWG Conductor, stranded (NO./mm) Insulation (mm) Sheath (mm) Overall diameter (mm) Max resistance 20°C (Ω/km), bare / tinned
300V 2 18 41/0.160 0.76 0.76 4 x 6.56 ± 0.1 22.4 / 23.6
300V 2 16 65/0.160 0.76 0.76 4.29 x 7.05 ± 0.1 14.1 / 14.9
300V 2 14 41/0.254 0.76 0.76 4.65 x 7.75 ± 0.1 8.88 / 9.34
300V 2 12 65/0.254 0.76 1.14 5.8 x 9.32 ± 0.1 5.58 / 5.88
300V 3 18 41/0.160 0.76 0.76 4 x 9 ± 0.1 22.4 / 23.6
300V 3 16 65/0.160 0.76 0.76 4.29 x 9.58 ± 0.1 14.1 / 14.9
300V 3 14 41/0.254 0.76 0.76 4.65 x 10.28 ± 0.1 8.88 / 9.34
300V 3 12 65/0.254 0.76 1.14 5.8 x 11.85 ± 0.1 5.58 / 5.88
300V 4 18 41/0.160 0.76 0.76 4 x 11.52 ± 0.1 22.4 / 23.6
300V 4 16 65/0.160 0.76 0.76 4.29 x 12.1 ± 0.1 14.1 / 14.9
300V 4 14 41/0.254 0.76 0.76 4.65 x 12.8 ± 0.1 8.88 / 9.34
300V 4 12 65/0.254 0.76 1.14 5.8 x 14.36 ± 0.1 5.58 / 5.88
600V 2 18 41/0.160 0.76 1.52 5.56 x 8.05 ± 0.1 22.4 / 23.6
600V 2 16 65/0.160 0.76 1.52 5.8 x 8.58 ± 0.1 14.1 / 14.9
600V 2 14 41/0.254 1.14 2.03 7.95 x 11.82 ± 0.1 8.88 / 9.34
600V 2 12 65/0.254 1.14 2.41 9.1 x 13.38 ± 0.1 5.58 / 5.88
600V 3 18 41/0.160 0.76 1.52 5.56 x 9.6 ± 0.1 22.4 / 23.6
600V 3 16 65/0.160 0.76 1.52 5.8 x 10.1 ± 0.1 14.1 / 14.9
600V 3 14 41/0.254 1.14 2.03 7.95 x 14.1 ± 0.1 8.88 / 9.34
600V 3 12 65/0.254 1.14 2.41 9.1 x 15.65 ± 0.1 5.58 / 5.88
600V 4 18 41/0.160 0.76 1.52 5.56 x 11.12 ± 0.1 22.4 / 23.6
600V 4 16 65/0.160 0.76 1.52 5.8 x 11.62 ± 0.1 14.1 / 14.9
600V 4 14 41/0.254 1.14 2.03 7.95 x 16.38 ± 0.1 8.88 / 9.34
600V 4 12 65/0.254 1.14 2.41 9.1 x 17.95 ± 0.1 5.58 / 5.88
This cable can also be supplied in other lengths, colors and jacket compounds. See how to customize a power cord.

Product Description of AWM 22094

Number of Poles and Wires:
 2 Cores, 3 Cores, 4 Cores
Power Cables Standard:
 UL 758
Rated Voltage:
 300V, 600V
Rated Temperature:
 60°C, 80°C, 90°C, 105°C, -40°C
Certified:
 UL, cUL
Copper Conductor Material:
 Oxygen free Copper (OFCU)
Outer Jacket Material:
 PVC
Core Structure:
 Cores twisted together
Flamability Rating:
 UL 94V-0
Color
 Black / White are standards, but any color available customized
Environmental Certifications:
 RoHS, Reach, PAHs
Country of Origin:
 Made In China
Packing:
 Standard Export Carton

Specifications of American UL AWM Power Cables:

American UL AWM Power Cables

American UL AWM Power Cables

More details of AWM 22094 for reference:

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

AWM 22094 of American UL AWM Power Cables

Related Products

AWM 2464

AWM 2464

AWM 20288

AWM 20288

AWM 20856

AWM 20856

AWM 1275

AWM 1275

AWM 1056

AWM 1056

Coiled Power Cords Retractable Spiral Cable

Coiled Power Cords Retractable Spiral Cable

Frequently Asked Questions

Common questions about this flexible power cable

Multi-conductor AWM cable that has to work outdoors. The style was issued in 2017 with a sunlight resistant PVC jacket proven for 720 hours, -40°C cold performance and 300 or 600Vac ratings, for the internal and external wiring of equipment installed outside.

18AWG to 2AWG, three or more conductors, with temperature classes of 60°C, 80°C, 90°C or 105°C and a -40°C cold limit. Insulation walls are 30 mils at 18 to 16AWG, 45 mils at 14 to 10AWG and 60 mils at 8 to 2AWG, and the jacket runs from 60 to 110 mils depending on cable diameter.

Voltage, cold performance and sunlight resistance. Style 2464 is an 80°C, 300Vac cable for electronic equipment inside a housing, while 22094 reaches 105°C, 600Vac and -40°C and carries a sunlight resistant jacket, which is what makes outdoor installation possible.

Yes, shielding is optional on the style page, and the conductors or groups of conductors may be laid parallel to form a flat or oval cable or cabled into a round construction.
