H05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-F

H05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-F, PVC Insulated Sheathed Flexible Power Cables

Europe VDE, TUV, Australia SAA, Korea KC, Brazil Inmetro Insulated Sheathed Flexible Power Cords

Our H05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-F products are RoHS, REACH and PAHS compliant.

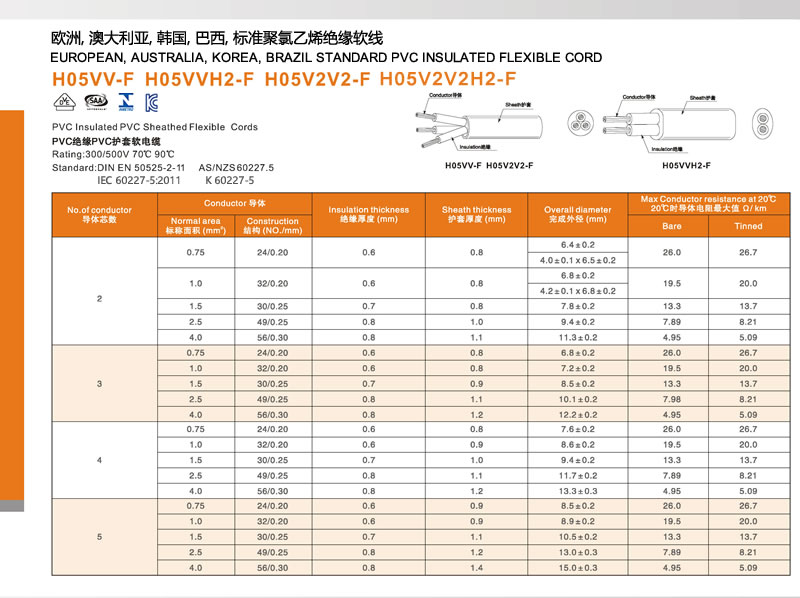

Cord Type Gauge/Sq.mm
H05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-F 2x0.75mm², 2x1.0mm², 2x1.5mm², 2x2.5mm², 2x4.0mm²
3x0.75mm², 3x1.0mm², 3x1.5mm², 3x2.5mm², 3x4.0mm²
4x0.75mm², 4x1.0mm², 4x1.5mm², 4x2.5mm², 4x4.0mm²
5x0.75mm², 5x1.0mm², 5x1.5mm², 5x2.5mm², 5x4.0mm²

Specifications

  • Label
    Value
  • Power Cables Standard:
    DIN EN 50525-2-11, AS/NZS 60227.5, IEC 60227-5, K60227-5
  • Rated Voltage:
    300V/500V
  • Rated Temperature:
    70°C, 90°C
  • Certified:
    VDE, TUV, SAA, KC, INMETRO
  • Copper Conductor Material:
    Oxygen free Copper (OFCU)
  • Outer Jacket Material:
    PVC
  • Core structure:
    Cores twisted together
  • Flamability Rating:
    UL 94V-0
  • Environmental Certifications:
    RoHS, REACH, PAHs
  • Samples:
    Free
  • Packing:
    Standard Export Carton
  • Country of Origin:
    Made In China

Available Cables Style Type

H05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-FH05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-FH05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-FH05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-FH05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-FH05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-F

Available Opposite End Connectors and Related Products
