H05RR-F, Rubber Insulated Sheathed Flexible Power Cables

European VDE, TUV, SAA and KC certified H05RR-F rubber insulated sheathed flexible cables, manufactured to DIN EN 50525-2-82, EN 50525-2-82 and AS/NZS 60245 standards. Rated 300V/500V at 60°C, available in 2-core to 5-core configurations with conductor sizes from 0.75mm² to 2.5mm². These rubber cables offer excellent flexibility, weather resistance, oil resistance and durable performance, ideal for power tools, industrial equipment, construction sites, stage lighting and portable machinery. Multi-certified with RoHS, REACH and PAHS compliant materials, OEM customization available.

No.of Core:2 Cores, 3 Cores, 4 Cores, 5 Cores

Electrical Voltage:300V/500V

Temperature:60°C

Approvals:VDE, TUV, KC, SAA Certified

Power Cable Standards :DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011, AS/NZS 60245.4

Our H05RR-F Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for H05RR-F, We are your best choice.

Categories: Europe VDE Rubber Power Cables

H05RR-F Available Cord / Cables Wire Styles

Cord Type	Gauge/Sq.mm
H05RR-F	2x0.75mm², 2x1.0mm², 2x1.5mm², 2x2.5mm²
	3x0.75mm², 3x1.0mm², 3x1.5mm², 3x2.5mm², 3x4.0mm², 3x6.0mm²
	4x0.75mm², 4x1.0mm², 4x1.5mm², 4x2.5mm², 4x4.0mm², 4x6.0mm²
	5x0.75mm², 5x1.0mm², 5x1.5mm², 5x2.5mm², 5x4.0mm², 5x6.0mm²

This cable can also be supplied in other lengths, colors and jacket compounds. See how to customize a power cord.

Product Description of H05RR-F


Number of Poles and Wires:	2 Cores, 3 Cores, 4 Cores, 5 Cores
Power Cables Standard:	DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011, AS/NZS 60245.4
Rated Voltage:	300V/500V
Rated Temperature:	60°C
Certified:	VDE, TUV, KC, SAA
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	Rubber
Core Structure:	Cores twisted together
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Country of Origin:	Made In China
Packing:	Standard Export Carton

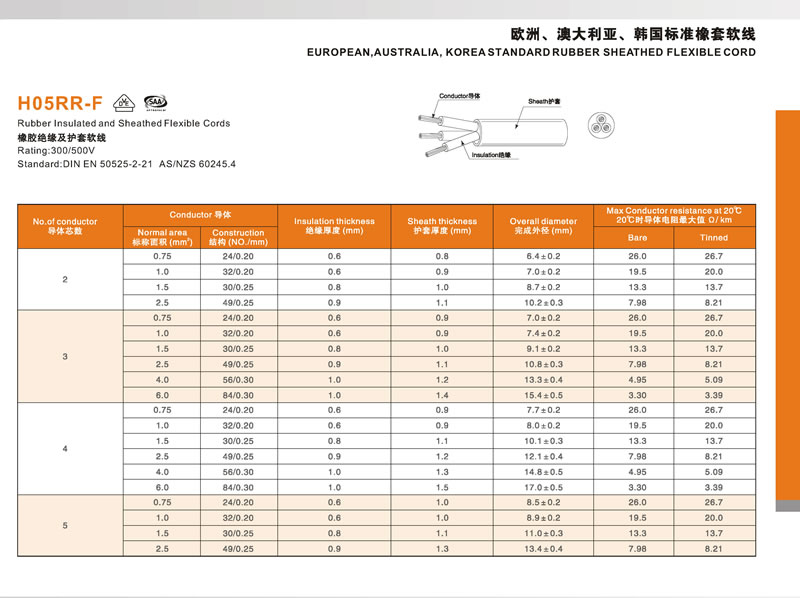

Specifications of Europe VDE Rubber Power Cables:

H05RR-F Wire Styles, Rubber Insulated Sheathed Flexible Power Cables

Europe VDE Rubber Power Cables

More details of H05RR-F for reference:

H05RR-F of Europe VDE Rubber Power Cables

Frequently Asked Questions

Common questions about this flexible power cable

H05RR-F is a rubber insulated sheathed flexible cable built to DIN EN 50525-2-82, EN 50525-2-82, AS/NZS 60245, rated 300V/500V, available in 2 cores, 3 cores, 4 cores, 5 cores with conductors of 0.75mm², 1.0mm², 1.5mm², 2.5mm². It is used for European appliances, light industrial equipment and flexible power connections.

It is manufactured to DIN EN 50525-2-82, EN 50525-2-82, AS/NZS 60245 and supplied with VDE, TUV, KC, SAA certification; the relevant harmonised/regional designation and test reports are available. Confirm the exact approval (e.g. UL, VDE, PSE or SAA) for the destination market.

Conductor sizes are 0.75mm², 1.0mm², 1.5mm², 2.5mm², in 2 cores, 3 cores, 4 cores, 5 cores. Larger cross-section reduces voltage drop and heating on longer or higher-current runs.

Rubber (e.g. EPR/elastomer, H07RN-F/SOOW types) stays flexible in the cold, resists oil, abrasion and weather, and suits outdoor, industrial and site use; PVC is smoother and lower cost for indoor appliances. Use the water-resistant grade for pumps and wet locations.
