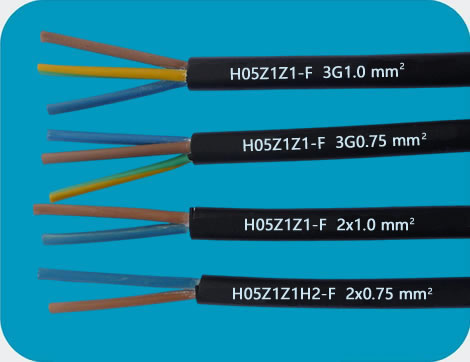

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F, Sheathed Flexible Power Cables (Round & Flat)

European VDE, TUV and CE certified H05Z1Z1-F round and H05Z1Z1H2-F flat LSZH low smoke zero halogen sheathed flexible cables, manufactured to EN 50525-3-11. Rated 300/500V at 70C with class 5 finely stranded flexible copper conductors per EN 60228, these halogen-free cables use TI6 core insulation and TM7 outer sheath compliant with EN 60332-1 flame retardancy, EN 60754 halogen-free and EN 61034 low smoke density standards. H05Z1Z1-F round cables available in 2-5 cores from 0.75mm2 to 2.5mm2, while H05Z1Z1H2-F flat cables available in 2 cores from 0.75mm2 to 1.5mm2. Ideal for public buildings, rail and transit, tunnels, data centers, hospitals, airports and confined spaces where fire safety and personnel protection are critical. RoHS, REACH and PAHS compliant, customizable lengths available.
No.of Core:2 Cores, 3 Cores, 4 Cores, 5 Cores
Electrical Voltage:300V/500V
Temperature:70C
Approvels:VDE, TUV, CE Certified
Power Cable Standards :EN 50525-3-11; BS EN 50363-7; BS EN 50363-8; EN 60332-1; EN 60754; EN 61034

Our LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F, We are your best choice.

Categories: Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F Available Cord / Cables Wire Styles

Cord Type Gauge/Sq.mm
H05Z1Z1-F (Round) 2x0.75mm2, 2x1.0mm2, 2x1.5mm2, 2x2.5mm2
3x0.75mm2, 3x1.0mm2, 3x1.5mm2, 3x2.5mm2
4x0.75mm2, 4x1.5mm2, 4x2.5mm2
5x2.5mm2
H05Z1Z1H2-F (Flat) 2x0.75mm2, 2x1.0mm2, 2x1.5mm2

Product Description of LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F

Number of Poles and Wires:
 2 Cores, 3 Cores, 4 Cores, 5 Cores
Power Cables Standard:
 EN 50525-3-11; BS EN 50363-7; BS EN 50363-8; EN 60332-1; EN 60754; EN 61034
Rated Voltage:
 300V/500V
Rated Temperature:
 70C
Certified:
 VDE, TUV, CE
Copper Conductor Material:
 Oxygen free Copper (OFCU)
Outer Jacket Material:
 LSZH
Core Structure:
 Cores twisted together
Flamability Rating:
 UL 94V-0
Color
 Black / White are standards, but any color available customized
Environmental Certifications:
 RoHS, Reach, PAHs
Country of Origin:
 Made In China
Packing:
 Standard Export Carton

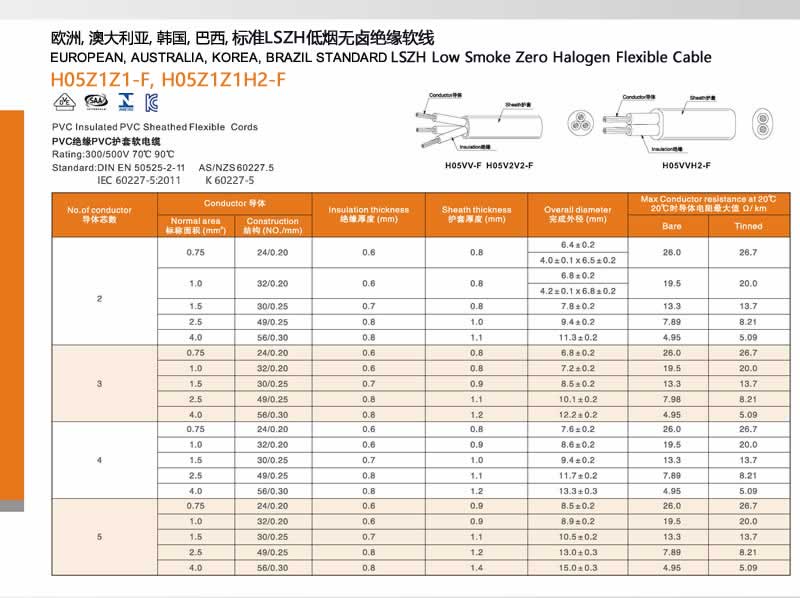

Specifications of Flexible Power Cables:

Flexible Power Cables

Flexible Power Cables

More details of LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F for reference:

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

LSZH Low Smoke Zero Halogen Power Cords, H05Z1Z1-F, H05Z1Z1H2-F of Flexible Power Cables

Related Products

H03RN-F

H03RN-F

H05RR-F

H05RR-F

H05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-F

H05VV-F, H05VVH2-F, H05V2V2-F, H05V2V2H2-F

H05RN-F

H05RN-F

H05RNH2-F

H05RNH2-F

H03RT-H

H03RT-H

Frequently Asked Questions

Common questions about this flexible power cable

LSZH (Low Smoke Zero Halogen) power cables emit minimal smoke and no corrosive halogen gases when exposed to fire, making them essential for enclosed public spaces and industrial environments. H05Z1Z1-F is the round flexible version for general-purpose wiring, while H05Z1Z1H2-F is the flat profile version designed for discreet routing under carpets, along skirting boards and in narrow gaps. Both are rated 300/500V at 70 degrees C and manufactured to EN 50525-3-11 with VDE certification.

Both are flexible 300/500V power cables, but the key difference is the jacket material. H05VV-F uses PVC which releases dense, toxic smoke and corrosive halogen gases during a fire, whereas H05Z1Z1-F uses a halogen-free LSZH compound that produces significantly less smoke and no acidic fumes. This protects people from smoke inhalation, prevents damage to sensitive equipment, and supports safer evacuation. LSZH is required or strongly recommended in hospitals, schools, airports, shopping malls, data centers, railway carriages and high-rise buildings where fire safety regulations apply.

Both H05Z1Z1-F (round) and H05Z1Z1H2-F (flat) are rated 300/500V with a maximum conductor temperature of 70 degrees C, and are hi-pot tested at 2000V. They are manufactured to EN 50525-3-11 (harmonized European standard), carry VDE certification, and comply with three key fire performance standards: flame retardant to EN 60332-1, halogen-free verified to EN 60754, and low smoke density to EN 61034. Materials are RoHS and REACH compliant.

H05Z1Z1-F (round) is available in 2, 3, 4 and 5 cores with Class 5 flexible copper conductors in 0.75mm2, 1.0mm2, 1.5mm2 and 2.5mm2 cross-sections, suitable for a wide range of appliance and equipment connections. H05Z1Z1H2-F (flat) is a 2-core cable available in 0.75mm2, 1.0mm2 and 1.5mm2, ideal for slim-profile installations where space is limited. Both use Class 5 annealed flexible copper conductors for excellent bending performance and long service life.

LSZH flexible power cables are used to connect domestic appliances, workshop equipment, portable tools and electrical devices in environments where fire safety is a priority. They are mandatory or specified in public and commercial buildings including hospitals, schools, universities, airports, railway stations, shopping centers, cinemas and theaters, as well as in data centers, server rooms, industrial control panels, marine vessels and railway rolling stock. The flat H05Z1Z1H2-F is particularly popular for under-carpet wiring, skirting board installations and display booth wiring where a low-profile finish is required.

Yes. H05Z1Z1-F and H05Z1Z1H2-F are both flame retardant and halogen-free, verified by three independent European standards. Flame retardancy is tested to EN 60332-1 (single vertical flame test), ensuring the cable does not propagate fire. Halogen-free content is verified to EN 60754, measuring the pH and conductivity of combustion gases to confirm no corrosive halogen acids are released. Low smoke density is measured to EN 61034, ensuring minimal smoke opacity in a fire to support safe evacuation. Together these certifications make these cables suitable for the most demanding fire-safe installations across Europe and beyond.
