H03RT-H, Rubber Insulated Braid Sheathed Flexible Power Cords

European VDE, TUV and CCC certified H03RT-H rubber insulated braided sheathed flexible cables, manufactured to DIN EN 50525-2-82 and EN 50525-2-82 standards. Rated 300V/300V at 60°C, available in 2-core and 3-core configurations with conductor sizes from 0.5mm² to 1.0mm². These braided cables feature a textile braided outer sheath for decorative and vintage-style applications, ideal for lighting fixtures, pendant lamps, home appliances and interior design projects. VDE, TUV and CCC certified with RoHS, REACH and PAHS compliant materials, customizable braid colors available.

No.of Core:2 Cores, 3 Cores

Electrical Voltage:300V/300V

Temperature:60°C

Approvels:VDE, TUV, CCC Certified

Power Cable Standards :DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011

Our H03RT-H Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for H03RT-H, We are your best choice.

Categories: Europe VDE Rubber Power Cables

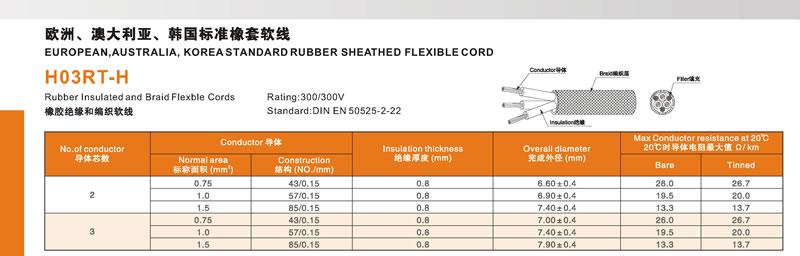

H03RT-H Available Cord / Cables Wire Styles

Cord Type	Gauge/Sq.mm
H03RT-H	2x0.75mm², 2x1.0mm², 2x1.5mm²
	3x0.75mm², 3x1.0mm², 3x1.5mm²

Product Description of H03RT-H


Number of Poles and Wires:	2 Cores, 3 Cores
Power Cables Standard:	DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011
Rated Voltage:	300V/300V
Rated Temperature:	60°C
Certified:	VDE, TUV, CCC
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	Rubber
Core Structure:	Cores twisted together
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Country of Origin:	Made In China
Packing:	Standard Export Carton

Specifications of Europe VDE Rubber Power Cables:

Europe VDE Rubber Power Cables

More details of H03RT-H for reference:

H03RT-H of Europe VDE Rubber Power Cables

Frequently Asked Questions

Common questions about this flexible power cable

H03RT-H is a rubber insulated braided sheathed flexible cable built to DIN EN 50525-2-82, EN 50525-2-82, rated 300V/300V, available in 2 cores, 3 cores with conductors of 0.5mm², 0.75mm², 1.0mm². It is used for lamps, pendant lights and decorative appliances where a textile braided look is wanted.

It is manufactured to DIN EN 50525-2-82, EN 50525-2-82 and supplied with VDE, TUV, CCC certification; the relevant harmonised/regional designation and test reports are available. Confirm the exact approval (e.g. UL, VDE, PSE or SAA) for the destination market.

Conductor sizes are 0.5mm², 0.75mm², 1.0mm², in 2 cores, 3 cores. Larger cross-section reduces voltage drop and heating on longer or higher-current runs.

Rubber (e.g. EPR/elastomer, H07RN-F/SOOW types) stays flexible in the cold, resists oil, abrasion and weather, and suits outdoor, industrial and site use; PVC is smoother and lower cost for indoor appliances. Use the water-resistant grade for pumps and wet locations.
