H03RN-F, Rubber Insulated Sheathed Single Flexible Power Cables

European VDE and TUV certified H03RN-F rubber insulated single core flexible cables, manufactured to DIN EN 50525-2-82 and EN 50525-2-82 standards. Rated 300V/300V at 60°C, available in single core configuration with conductor sizes from 0.5mm² to 1.0mm². These rubber cables offer excellent flexibility, weather resistance and durable performance, ideal for internal wiring of electrical devices, small appliances, lighting systems and portable equipment. VDE and TUV certified with RoHS, REACH and PAHS compliant materials, OEM customization available.

No.of Core:1 Core

Electrical Voltage:300V/300V

Temperature:60°C

Approvals:VDE, TUV Certified

Power Cable Standards :DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011

Our H03RN-F Power Cable products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Certainly! If you're looking for H03RN-F, We are your best choice.

Categories: Europe VDE Rubber Power Cables

H03RN-F Available Cord / Cables Wire Styles

Cord Type	Gauge/Sq.mm
H03RN-F	1x0.5mm², 1x0.75mm²

This cable can also be supplied in other lengths, colors and jacket compounds. See how to customize a power cord.

Product Description of H03RN-F


Number of Poles and Wires:	1 Core
Power Cables Standard:	DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011
Rated Voltage:	300V/300V
Rated Temperature:	60°C
Certified:	VDE, TUV
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	Rubber
Core Structure:	Cores twisted together
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Country of Origin:	Made In China
Packing:	Standard Export Carton

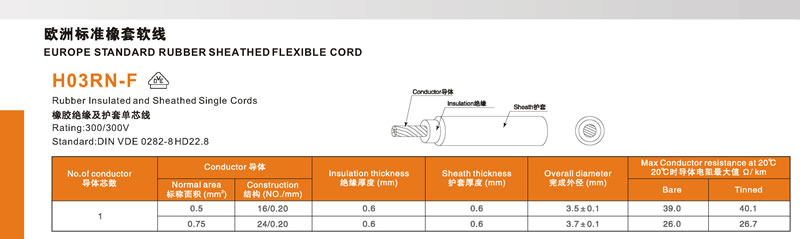

Specifications of Europe VDE Rubber Power Cables:

H03RN-F Wire Styles, Rubber Insulated Sheathed Single Flexible Power Cables

Europe VDE Rubber Power Cables

More details of H03RN-F for reference:

H03RN-F of Europe VDE Rubber Power Cables

Frequently Asked Questions

Common questions about this flexible power cable

H03RN-F is a rubber insulated single core flexible cable built to DIN EN 50525-2-82, EN 50525-2-82, rated 300V/300V, available in 1 core with conductors of 0.5mm², 0.75mm², 1.0mm². It is used for European appliances, light industrial equipment and flexible power connections.

It is manufactured to DIN EN 50525-2-82, EN 50525-2-82 and supplied with VDE, TUV certification; the relevant harmonised/regional designation and test reports are available. Confirm the exact approval (e.g. UL, VDE, PSE or SAA) for the destination market.

Conductor sizes are 0.5mm², 0.75mm², 1.0mm², in 1 core. Larger cross-section reduces voltage drop and heating on longer or higher-current runs.

Rubber (e.g. EPR/elastomer, H07RN-F/SOOW types) stays flexible in the cold, resists oil, abrasion and weather, and suits outdoor, industrial and site use; PVC is smoother and lower cost for indoor appliances. Use the water-resistant grade for pumps and wet locations.
