NEMA L5-30P to NEMA 5-20R X2 for RV Generator Power Adapter Cord Sets

30A to 20A 125V/250V for RV Generator Power Adapter Cord Sets

3 Prong to 3 Prong

NEMA L5-30P to NEMA 5-20R X2 Power Adapter Cord Sets, RV Adapter Cord Sets, 30A NEMA L5-30P to 20A NEMA 5-20R X2, Twist Locking Plug, 125V/250V, with Y Splitter, use for Generator Adapter Cord Sets, Yacht Shore Power Adapter Extension Cord Sets: with UL cUL, ETL Certified, NEMA L5-30P Male Plug to NEMA 5-20R X2 Female Receptacle Easy Unplug Design for RV Power Cords, EV, Trailer, Camper, Yacht Shore Power Adapter Cord Sets and Generator Adapter Cord Sets.

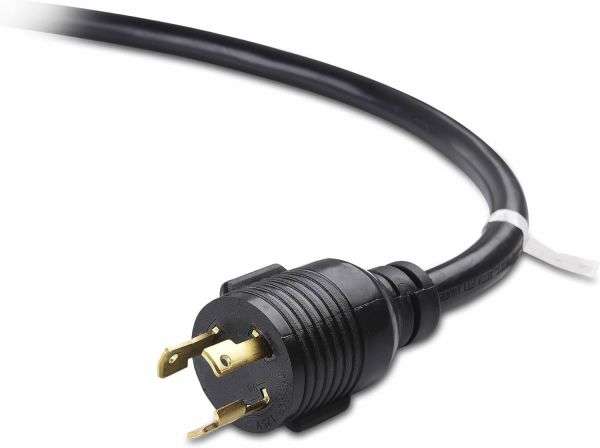

Male Plug:30A NEMA L5-30P Male plug

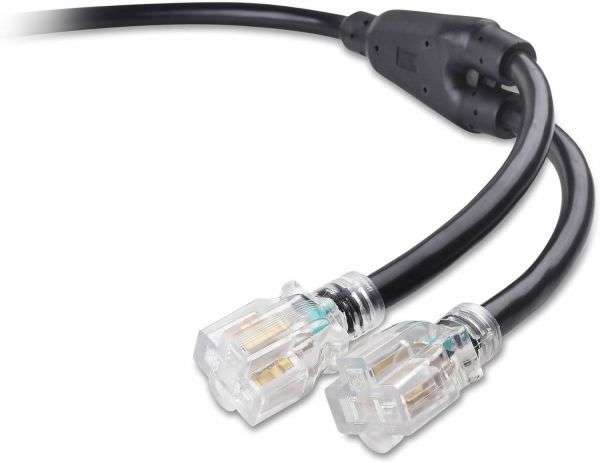

Female Connector:20A NEMA 5-20R X2 Female Receptacle

Voltage :125V/250V

Approvels :UL/cUL/ETL Certified

Plug / Connector / Wires: Any Color Available

Cable Length: 1FT, 1.5FT, 2FT, 3FT, 10FT, 25FT, 50FT, 75FT, 100FT, And Any Length Available

Certainly! If you're looking for NEMA L5-30P to NEMA 5-20R X2 Power Adapter Cord Sets, We are your best choice.

Categories: RV Generator Power Adapter Cord Sets, RV Generator Power Extension Cords

NEMA L5-30P to NEMA 5-20R X2 for RV Generator Power Adapter Cord Sets Product Description


Plug / Connector Standard:	NEMA L5-30P to NEMA 5-20R X2
Maximum Current rating:	30A to 20A
Maximum Voltage:	125V/250V
Number of Poles and Wires:	3 prong to 3 prong
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton

More pictures of Power Adapter Cord Sets for reference:

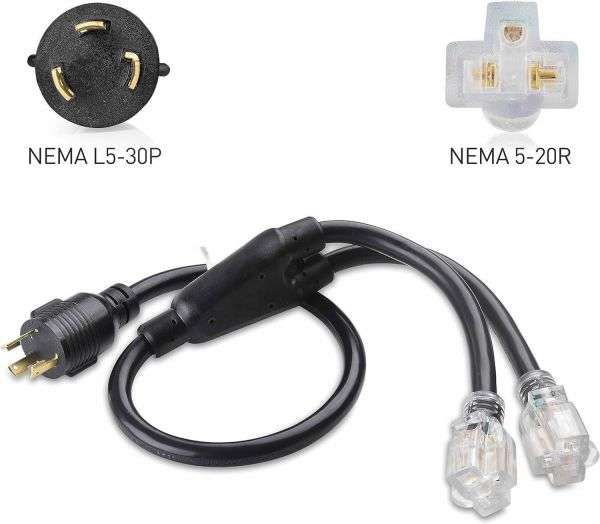

NEMA L5-30P to NEMA 5-20R X2 Power Adapter Cord Sets

Packaging Method For RV Generator Power Adapter Cord Sets

Power Adapter Cord Sets Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.

Frequently Asked Questions

Common questions about this RV, generator and shore-power cord

This adapter cord converts a NEMA L5-30P source connection to a NEMA 5-20R equipment/inlet connection, rated 125V, so RVs, campers and portable generators can be powered from a pedestal, generator or outlet that uses a different NEMA configuration.

No. It is a physical connector adapter only; it does not convert voltage and does not increase current. The load is limited by the lowest-rated connector and the supply circuit, so a 30 A adapter on a 50 A supply still delivers only what the 30 A side and the RV can safely draw.

The NEMA L5-30P (male, ending 'P') is the source end that plugs into the outlet or generator; the NEMA 5-20R (female, ending 'R') is the outlet end the RV, dryer, welder or shore-power inlet plugs into.

Outdoor and marine versions use weather-resistant cable and sealing boots; for shore power always use a listed marine cordset with the proper inlet and a working ground-fault (GFCI/ELCI) protection, and inspect the cord before each use.
