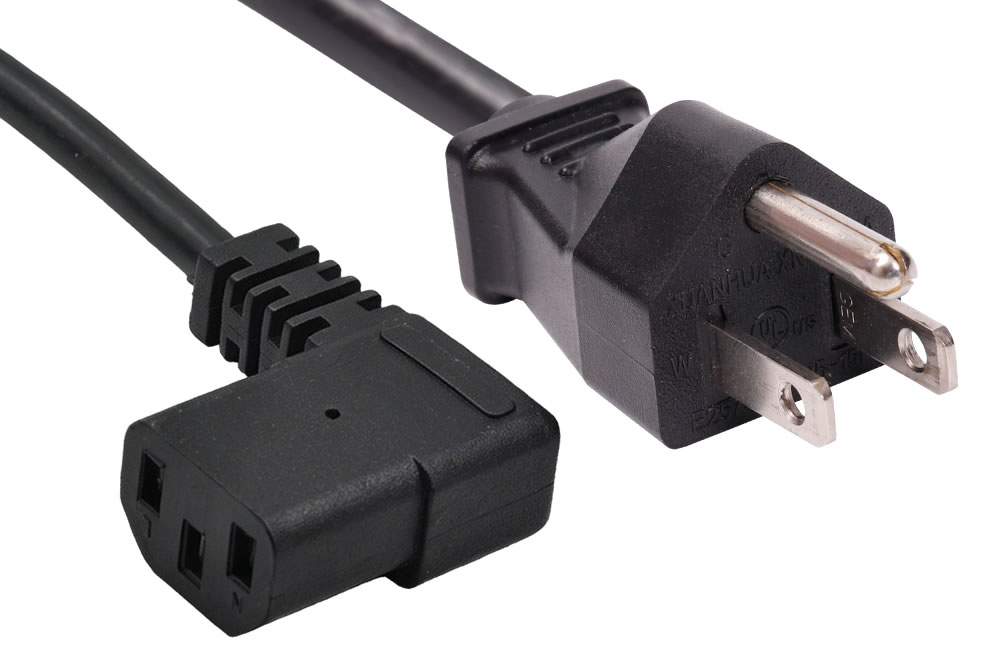

USA NEMA 5-15P Plug to IEC 60320 C13 Left Angle Connector

Plug and Connector Type: B,C13
American UL 3 pins NEMA 5-15P plug to IEC 60320 C13 Left Angle Connector, American Power Supply Cords with UL Certified List.
Built to NEMA 5-15P, IEC 60320 C13 standards.
Rated up to 10A 125V.

Our USA NEMA 5-15P Plug to IEC 60320 C13 Left Angle Connector products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Get PDF to Print

Specifications

Label

Value
Connector Standard:

NEMA 5-15P, IEC 60320 C13
Maximum Current rating:

10A
Maximum Voltage:

125V
Number of Poles and Wires:

3 poles, 3 wires
Copper Conductor Material:

Oxygen free Copper (OFCU)
Outer Jacket Material:

PVC, Rubber, Halogen-Free, Textile braid
Blade Material:

Nickel coated Brass
Flamability Rating:

UL 94V-0
Color:

Black is standard but any color available
Temperature Rating:

Minus 40C though plus 75C
Approvals:

UL
Environmental Certifications:

RoHS, REACH, PAHs
Testing:

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:

Made In China
Packing:

Standard Export Carton

Available Wire Styles

Gauge/ # Conductors	Cord Type
3Cx18AWG, 3Cx16AWG	SPT-2, SPT-3
3Cx18AWG, 3Cx16AWG	HPN
3Cx18AWG	SVT, SVTO, SVTOO
3Cx18AWG, 3Cx16AWG, 3Cx14AWG, 3CX12AWG	SPT-3, SJT, SJTO, SJTW, SJTOO, SJTOW, SJTOOW
