Brazil Power Cords, NBR 14136 Plug to IEC 60320 C15 Connector, Type N, 3 poles Plug, INMETRO Certified

Brazil Power Cords, 10A 250V, Type N Plug to IEC 60320 C15 Connector. The Brazil AC Cords according to NBR 14136 Standards with INMETRO certification. Non-Rewirable Plug 2 poles with Earthing Contact Moulded with Flexible cords. This Brazil Three prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Brazil market. Our Brazil Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

Plug Type :N

Approvels :INMETRO Certified

Electrical Rating :10A

Voltage :250V

Plug / Connector Standards :NBR 14136, IEC 60320 C15

Brazil INMETRO 3 pins NBR 14136 plug to IEC 60320 C15 Connector, Brazil Power Supply Cords with INMETRO Certified List.
Built to NBR 14136, IEC 60320 C15 standards.
Rated up to 10A 250V.

Categories: Brazil Inmetro Power Cords

Brazil Power Cords, NBR 14136 Plug to IEC 60320 C15 Connector, Type N, 3 poles Plug, INMETRO Certified Product Description


Plug / Connector Standard:	NBR 14136, IEC 60320 C15
Maximum Current rating:	10A
Maximum Voltage:	250V
Number of Poles and Wires:	3 poles, 3 wires
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton

Brazil Power Cords, NBR 14136 Plug to IEC 60320 C15 Connector, Type N, 3 poles Plug, INMETRO Certified Available Cord / Cables Wire Styles

Gauge/ # Conductors	Cord Type
3x0.5mm²	H03VV-F, H05VV-F, H05RR-F, H05RN-F
3x0.75mm²	H03VV-F, H05VV-F, H05RR-F, H05RN-F, H05V2V2-F
3x1.00mm²	H05VV-F, H05RR-F, H05RN-F, H05V2V2-F
3x1.5mm²	H05VV-F, H05RR-F, H05RN-F, H05V2V2-F, H07RN-F

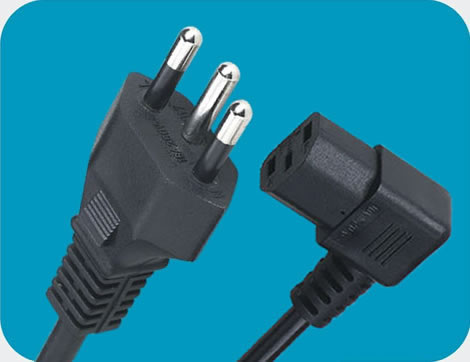

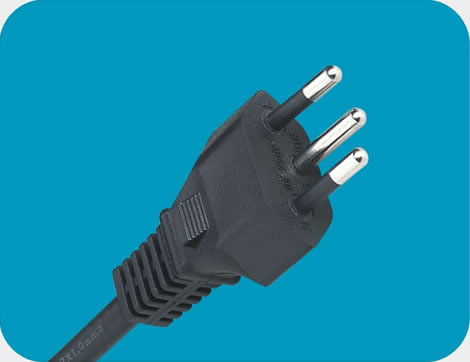

More pictures of Power Cords for reference:

Brazil Power Cords, NBR 14136 Plug to IEC 60320 C15 Connector, Type N, 3 poles Plug, INMETRO Certified

Power Cords Terminals Processing Available Opposite End

We have the ability to customize the opposite end of various power cords, stripping cables,
including any terminals, Strain Relief customization and design.
To match the personalization request in field of power cord connectors of each customer.
