Type: L

Type: C15

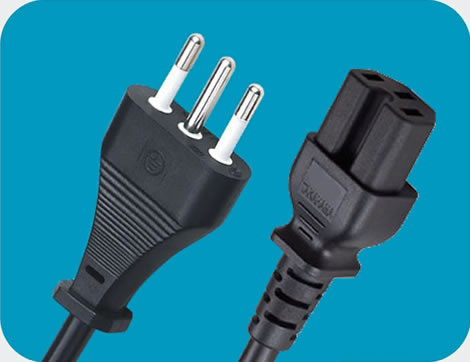

Italy Power Cords, CEI 23-50 Plug to IEC 60320 C15 Connector, Type L, 3 poles Plug, IMQ Certified

Italy Power Cords, 10A 250V, Type L Plug to IEC 60320 C15 Connector. The Italy AC Cords according to CEI 23-50 Standards with IMQ certification. Non-Rewirable Plug 2 poles with Earthing Contact Moulded with Flexible cords. This Italy Three prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Italy market. Our Italy Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

Plug Type :L

Approvels :IMQ Certified

Electrical Rating :10A

Voltage :250V

Plug / Connector Standards :CEI 23-50, IEC 60320 C15

Italy IMQ 3 pins CEI 23-50 plug to IEC 60320 C15 Connector, Italy Power Supply Cords with IMQ Certified List.
Built to CEI 23-50, IEC 60320 C15 standards.
Rated up to 10A 250V.

Categories: Italy IMQ Power Cords

Italy Power Cords, CEI 23-50 Plug to IEC 60320 C15 Connector, Type L, 3 poles Plug, IMQ Certified Product Description


Plug / Connector Standard:	CEI 23-50, IEC 60320 C15
Maximum Current rating:	10A
Maximum Voltage:	250V
Number of Poles and Wires:	3 poles, 3 wires
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton

Italy Power Cords, CEI 23-50 Plug to IEC 60320 C15 Connector, Type L, 3 poles Plug, IMQ Certified Available Cord / Cables Wire Styles

Gauge/ # Conductors	Cord Type
3x0.5mm²	H03VV-F
3x0.75mm²	H03VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F
3x1.0mm²	H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F, H07RN-F
3x1.5mm²	H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F, H07RN-F

Power Cords Terminals Processing Available Opposite End

We have the ability to customize the opposite end of various power cords, stripping cables,
including any terminals, Strain Relief customization and design.
To match the personalization request in field of power cord connectors of each customer.

Remove Outer Jacket

Remove Outer Jacket
Semi-Strip

Remove Outer Jacket
Tooth Terminals

Remove Outer Jacket
Tinned

Cable Clamp
Strain Relief

Remove Outer Jacket
Terminals / Sleeve

Remove Outer Jacket
Round Ring Terminals

Remove Outer Jacket
Connector

Italy Power Cords, CEI 23-50 Plug to IEC 60320 C15 Connector, Type L, 3 poles Plug, IMQ Certified, also to IEC C5, IEC C13, IEC C14, IEC C15, IEC C19, IEC C20 etc Cord sets connector. All Italy IMQ Power Cords can be paired with various IEC 60320 Connectors according to customer requirements.

Lamp Sockets: E12, E14, E26, E27, Hooks, etc for Italy IMQ 3 pins CEI 23-50 plug to IEC 60320 C15 Connector, Italy Power Supply Cords

Packaging Method For Power Cords

Italy IMQ Power Cords Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.

Frequently Asked Questions

Common questions about this international power cord

This cord set has a moulded CEI 23-50, Type L mains plug on the wall end and an IEC 60320 C15 connector on the equipment end, rated 10A 250V, a 3-core earthed cord with protective earth. The C15 plugs into the equipment's IEC 60320 C16 inlet, as found on electric kettles, coffee machines, heaters, hair straighteners and high-temperature server/network gear. It is approved to IMQ for Italy.

The finished cord set is certified to IMQ for Italy, so it matches the mandatory plug and safety approval used on that market; test reports and the certificate are available on request. The cable uses RoHS/REACH/PAHS-compliant materials.

The C15 is the hot-condition connector; a ridge stops a C13 being fitted where heat resistance is required It mates only with the IEC 60320 C16 appliance inlet and is used on electric kettles, coffee machines, heaters, hair straighteners and high-temperature server/network gear. Straight or angled orientation and cable length can be specified when ordering.

No. The cord only carries power and does not convert voltage or current; verify the appliance accepts the local supply voltage and that the load is within the cord's 10A rating.
