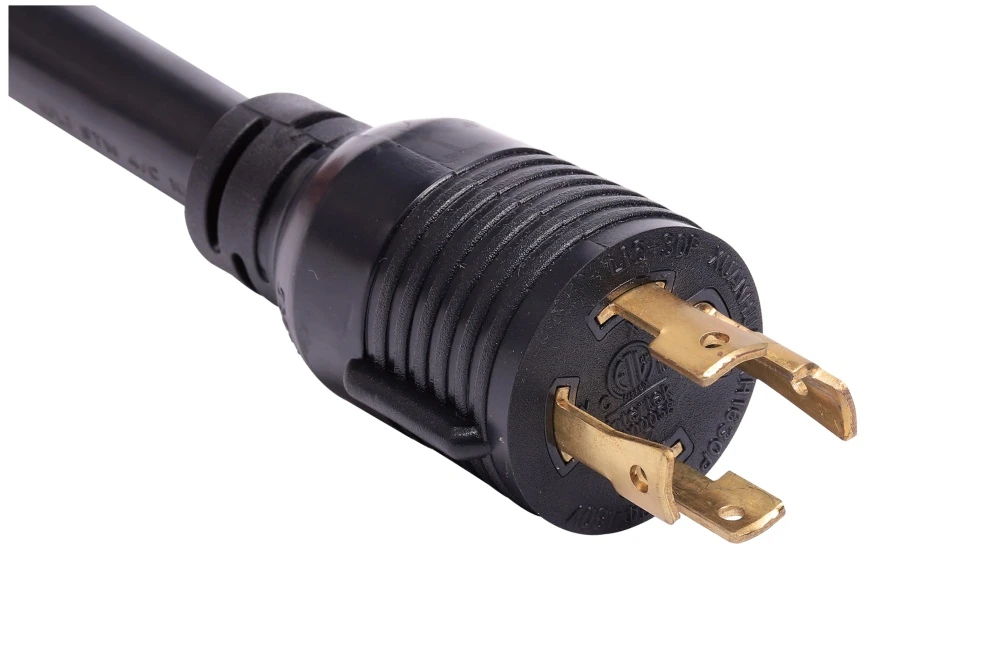

NEMA L16-30P Male Twist Locking Plug American Power Cord, 30A, 3φ~/480V, UL/cULus/ETL Certified
NEMA L16-30P
The NEMA L16-30P is a 30A 3φ~/480V Male Twist Locking Plug with 4 prong 3 poles 4 wires, engineered for three-phase industrial machinery, data centers, and heavy equipment at 480V. This American Power Cord is UL/cULus/ETL certified and built with RoHS, REACH, PAHS, and Prop65 compliant materials. Engineered to NEMA WD-6 standards for robust high-voltage three-phase power.
Power Cord & Power Connectors Manufacturer With RoHS, Reach, PAHs Compliant.
Frequently Asked Questions
Common questions about NEMA NEMA L16-30P cords and connectors
The NEMA L16-30P is a NEMA locking connector rated 30 A at 480 V three-phase, 3-pole, 4-wire (grounded, no neutral), for three-phase circuits. The L-prefix indicates a twist-locking connector that must be inserted and rotated to secure it, preventing accidental disconnection under vibration. The trailing P identifies it as a male plug; it pairs only with the matching NEMA L16-30R.
The 30 A 480 V three-phase NEMA L16-30P is typically used for locking three-phase 480 V industrial motors, pumps and heavy machinery. Selecting the correct 30 A 480 V three-phase locking connector ensures the contacts and cable can carry the load without overheating and that the three-phase supply is connected with the proper grounding and polarity.
The NEMA L16-30P is the locking male plug, typically fitted on the end of a power cord or equipment inlet lead, and it only mates with a matching NEMA L16-30R female receptacle (socket-outlet or cord connector). It carries 30 A at 480 V three-phase in a 3-pole, 4-wire (grounded, no neutral) configuration, so the outlet, wiring and overcurrent protection must all be rated for at least 30 A.
No. NEMA connectors are keyed by voltage, current, phase and grounding, so the NEMA L16-30P mates only within its own 30 A 480 V three-phase family. The L16 is keyed for 480 V three-phase and will not mate with 250 V L15 or other locking connectors. When two configurations must be joined, use a properly rated, UL-listed adapter or cord set, and never exceed the lowest current rating in the chain.
Yes. We manufacture UL/cUL and ETL listed NEMA L16-30P cord sets, rewireable plugs and receptacles, and molded connectors using RoHS, REACH, PAHS and Proposition 65 compliant cable, with custom lengths, wire gauges, jacket colors, strain relief and labeling. MOQ is typically 200-1000 pieces, samples ship in 7-15 days and bulk production takes 15-20 working days.
