What is a Thai Type O 3-pin plug to IEC 60320 C15 high-temperature power cord?

This cord has a Type O 3-pin plug mains plug and an IEC 60320 C15 connector, rated 2.5A, 6A, 10A, 16A 250V, with a higher temperature rating than C13 for heat-generating appliances. It is certified to TISI.

What is the difference between C13 and C15 connectors?

They look similar, but C15 is rated for higher temperature and has a ridge that stops it being fitted where C13 is specified; C15 mates with the C16 inlet.

Which appliances require a C15 connector?

C15 is used on electric kettles, coffee machines, immersion heaters, stage lighting and other equipment that runs hot, where a heat-rated cord is required.

Can I use a C13 cord where C15 is specified?

No. Where the appliance or standard requires a heat-rated C15, a C13 cord must not be substituted; follow the equipment specification.

What standard does this Thai cord meet, and what is TIS 166-2549?

TIS 166-2549 is the national standard the cord is manufactured and tested against; it defines the plug dimensions, pin layout and safety requirements for the target market. The certified cord carries the TISI approval and is supplied to that standard.

Can the opposite end be made to our drawing?

Yes. Send the end drawing and we will strip, tin or terminate the conductors to suit it. Typical finishes are set out in power cord wire end options .

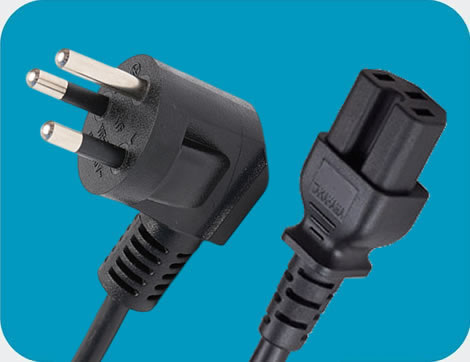

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C15 Connector, Type O, 3 poles Plug, TISI Certified

Thailand Power Cords, 2.5A, 6A, 10A, 16A 250V, Type O Plug to IEC 60320 C15 Connector. The Thailand AC Cords according to TIS 166-2549 Standards with TISI certification. Non-Rewirable Plug 2 poles with Earthing Contact Moulded with Flexible cords. This Thailand Three prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Thailand market. Our Thailand Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

Electrical Rating:2.5A, 6A, 10A, 16A

Voltage:250V

Plug / Connector:TIS 166-2549 to IEC 60320 C15 Connector

Number of Poles and Wires:3 poles, 3 wires

Approvals:TISI Certified

Samples:Available
Batch lead time:15-20workdays
MOQ:200 - 1000 Pieces
Production capacity:2 million pieces per month
Currency:Export business supports settlement in RMB, USD, EUR and GBP etc.
Export rights:We are a China-based factory with our own export license.

The basic standard used to investigate products in this category is TIS 166-2549, IEC 60320 C15, and the assembly is supplied under TISI Certified marking, RoHS and REACH compliant.

Categories: Thailand TISI Power Cords

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C15 Connector, Type O, 3 poles Plug, TISI Certified Product Description


Plug / Connector Standard:	TIS 166-2549 / IEC 60320 C15
Approvals:	TISI Certified
Maximum Current rating:	2.5A, 6A, 10A, 16A
Maximum Voltage:	250V
Number of Poles and Wires:	3 poles, 3 wires
Indoor/Outdoor:	Both Available
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs, Prop 65
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton, Pallets

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C15 Connector, Type O, 3 poles Plug, TISI Certified Available Cord / Cables Wire Styles

Gauge/ # Conductors	Cord Type
3x0.5mm²	H03VV-F
3x0.75mm²	H03VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-H, H05V2V2-F
3x1.0mm²	H05VV-F, H05RR-F, H05RN-F, H03RT-H, H07RN-F, H05V2V2-F
3x1.5mm²	H05VV-F, H05RR-F, H05RN-F, H03RT-H, H07RN-F

Different length, jacket color or plug? See how to customize a power cord.

Power Cords Supplier, Manufacturer In China

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C15 Connector, Type O, 3 poles Plug, TISI Certified

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C15 Connector, Type O, 3 poles Plug, TISI Certified Product Description

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C15 Connector, Type O, 3 poles Plug, TISI Certified Available Cord / Cables Wire Styles

Power Cords Terminals Processing Available Opposite End

Remove Outer Jacket

Remove Outer Jacket Semi-Strip

Semi-Strip, Cores Intact

Tooth Terminals

Metal Fasten Bolt

Ferrite Core, Anti-Interference

PG Waterproof Strain Relief

303 On/Off Switch

Foot On/Off Switch

IEC 60320 C5, C13, C14, C15, C19, C20 cord set connectors, paired to the plug on this page.

Packaging Method For Power Cords

Thailand TISI Power Cords Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.

Related Product

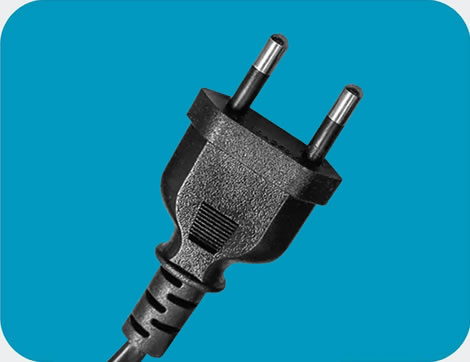

Thailand Power Cords, TIS 166-2549 Plug, Type C, 2 poles, TISI Certified

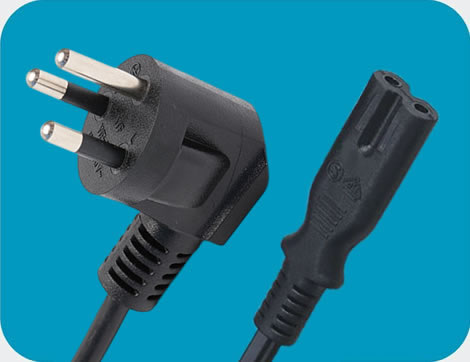

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C7 Connector, Type O, 2 poles Plug, TISI Certified

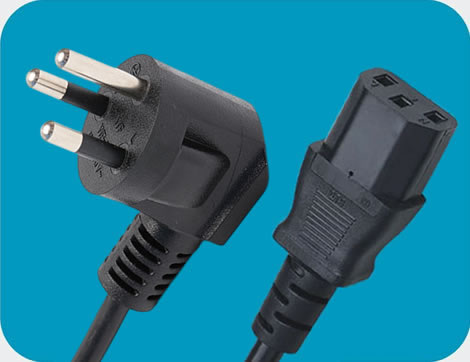

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C13 Connector, Type O, 3 poles Plug, TISI Certified

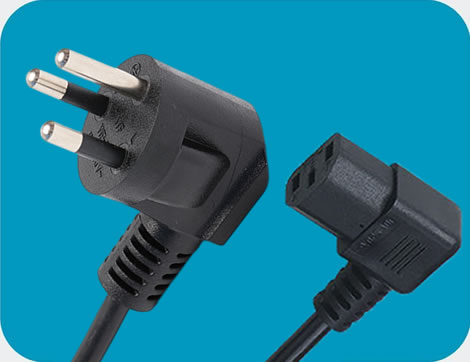

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C13 Left Angle Connector, Type O, 3 poles Plug, TISI Certified

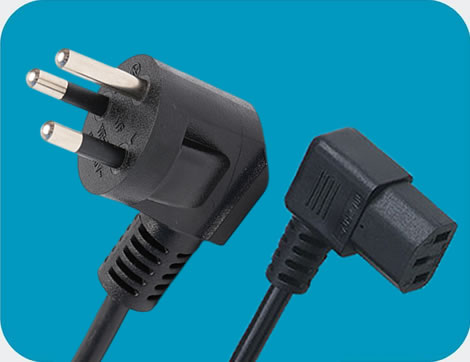

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C13 Right Angle Connector, Type O, 3 poles Plug, TISI Certified

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C5 Laptop Connector, Type O, 3 poles Plug, TISI Certified

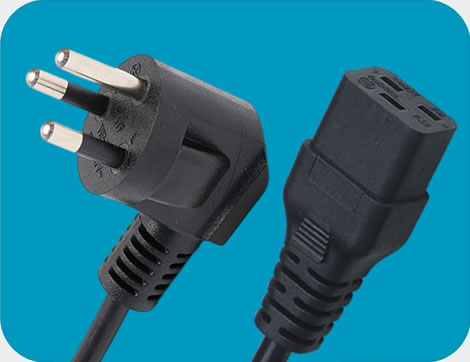

Thailand Power Cords, TIS 166-2549 Plug to IEC 60320 C19 Connector, Type O, 3 poles Plug, TISI Certified
