Type: G

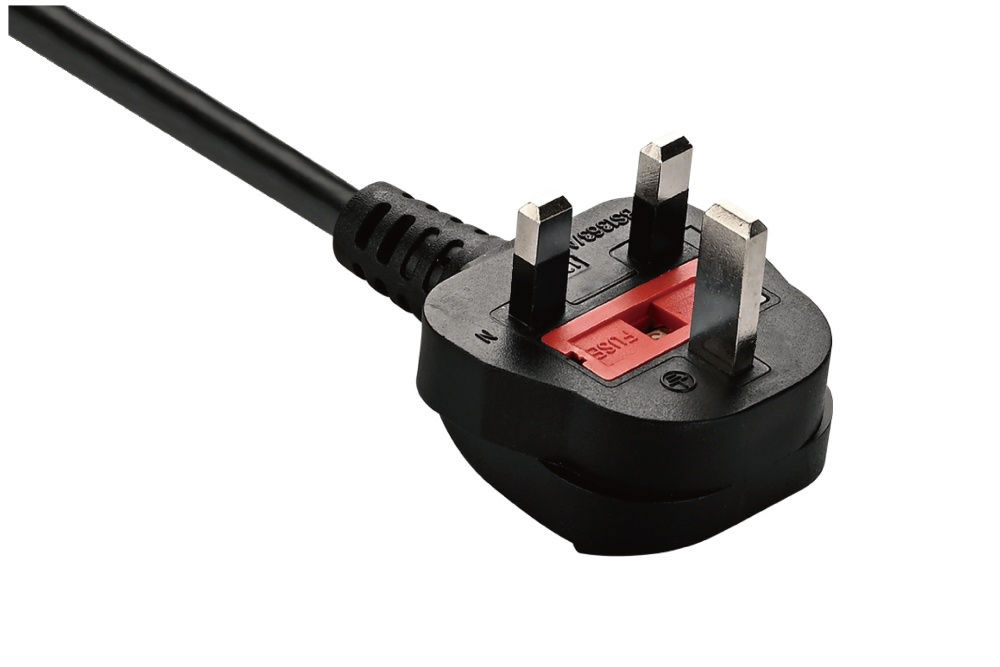

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified

UK BS 1363 molded power cords rated 3A, 5A, 7A, 10A and 13A at 250V, equipped with Type G 3-pin plug and integrated cartridge fuse for overload protection. Manufactured to BS 1363/A standards with ASTA certification, these non-rewireable molded plugs feature a compact ergonomic housing with shutters for safe contact. Compatible with H03VV-F, H05VV-F PVC and H07RN-F rubber flexible cables in 2-core and 3-core configurations. Ideal for home appliances, office equipment, computers and consumer electronics across the UK, Ireland and Middle East markets. RoHS and REACH compliant with full OEM customization for cable lengths, colors and fuse ratings.

Plug Type :G

Approvels :ASTA Certified

Electrical Rating :3A,5A,7A,10A,13A

Voltage :250V

Plug / Connector Standards :BS 1363/A

UK ASTA 3 pins BS 1363 Molding plug, UK Power Supply Cords with ASTA Certified List.
Built to BS 1363/A standards.
Rated up to 3A,5A,7A,10A,13A 250V.

Categories: UK ASTA Power Cords

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified Product Description


Plug / Connector Standard:	BS 1363/A
Maximum Current rating:	3A,5A,7A,10A,13A
Maximum Voltage:	250V
Number of Poles and Wires:	3 poles, 3 wires
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified Available Cord / Cables Wire Styles

Gauge/ # Conductors	Cord Type
2x0.5mm²	H03VV-F, H03VVH2-F
2x0.75mm²	H03VV-F, H03VVH2-F, H05VV-F, H05VVH2-F, H05RR-F, H05RN-F, H03RT-H
2x1.0mm²	H05VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-H
2x1.5mm²	H05VV-F, H05VV-F, H05RR-F, H05RN-F, H07RN-F, H03RT-H
3x0.5mm²	H03VV-F
3x0.75mm²	H03VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-H
3x1.0mm²	H05VV-F, H05RR-F, H05RN-F, H03RT-H, H07RN-F
3x1.5mm²	H05VV-F, H05RR-F, H05RN-F, H03RT-H, H07RN-F

Power Cords Terminals Processing Available Opposite End

We have the ability to customize the opposite end of various power cords, stripping cables,
including any terminals, Strain Relief customization and design.
To match the personalization request in field of power cord connectors of each customer.

Remove Outer Jacket

Remove Outer Jacket
Semi-Strip

Remove Outer Jacket
Tooth Terminals

Remove Outer Jacket
Tinned

Cable Clamp
Strain Relief

Remove Outer Jacket
Terminals / Sleeve

Remove Outer Jacket
Round Ring Terminals

Remove Outer Jacket
Connector

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified, also to IEC C5, IEC C13, IEC C14, IEC C15, IEC C19, IEC C20 etc Cord sets connector. All UK ASTA Power Cords can be paired with various IEC 60320 Connectors according to customer requirements.

Lamp Sockets: E12, E14, E26, E27, Hooks, etc for BS 1363 Molded UK Power Cords with Fuse, ASTA Certified

Packaging Method For Power Cords

UK ASTA Power Cords Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.

Frequently Asked Questions

Common questions about this international power cord

This cord has a moulded BS 1363 Molding rated 3A,5A,7A,10A,13A 250V on a 3-wire (live, neutral, earth) cable. The equipment end is supplied with the jacket removed and all conductors stripped, ready to wire into the appliance or terminal block. It is certified to ASTA.

The finished cord set is certified to ASTA for the target market; test reports and the certificate are available on request, and the cable uses RoHS-, REACH- and PAHS-compliant materials.

Connect live and neutral to the corresponding terminals and the green/yellow conductor to the protective-earth terminal, then secure the strain relief. Ends can be supplied tinned or pre-fitted with terminals.

The 2-wire version has no earth and suits double-insulated Class II appliances; the 3-wire version adds a protective-earth conductor for grounded Class I equipment. Choose the version matching the appliance class and inlet.

Power Cords Supplier, Manufacturer In China

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified Product Description

Plug / Connector Standard:

Maximum Current rating:

Maximum Voltage:

Number of Poles and Wires:

Copper Conductor Material:

Outer Jacket Material:

Blade Material:

Flamability Rating:

Color

Environmental Certifications:

Testing:

Country of Origin:

Packing:

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified Available Cord / Cables Wire Styles

Power Cords Terminals Processing Available Opposite End

Remove Outer Jacket

Remove Outer Jacket Semi-Strip

Remove Outer Jacket Tooth Terminals

Remove Outer Jacket Tinned

Cable Clamp Strain Relief

Remove Outer Jacket Terminals / Sleeve

Remove Outer Jacket Round Ring Terminals

Remove Outer Jacket Connector

UK BS 1363 Molded Power Cords, Type G Plug with 3A-13A Fuse, ASTA Certified, also to IEC C5, IEC C13, IEC C14, IEC C15, IEC C19, IEC C20 etc Cord sets connector. All UK ASTA Power Cords can be paired with various IEC 60320 Connectors according to customer requirements.

Packaging Method For Power Cords

UK ASTA Power Cords Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.

Related Product

Frequently Asked Questions

What is a British standard-body BS 1363 Molding power cord with bare, stripped wire ends?

What certification does this British power cord carry, and where is it used?

How do I wire the stripped ends, and which conductor is the earth?

What is the difference between the 2-wire and 3-wire versions?
