American UL Power Cords

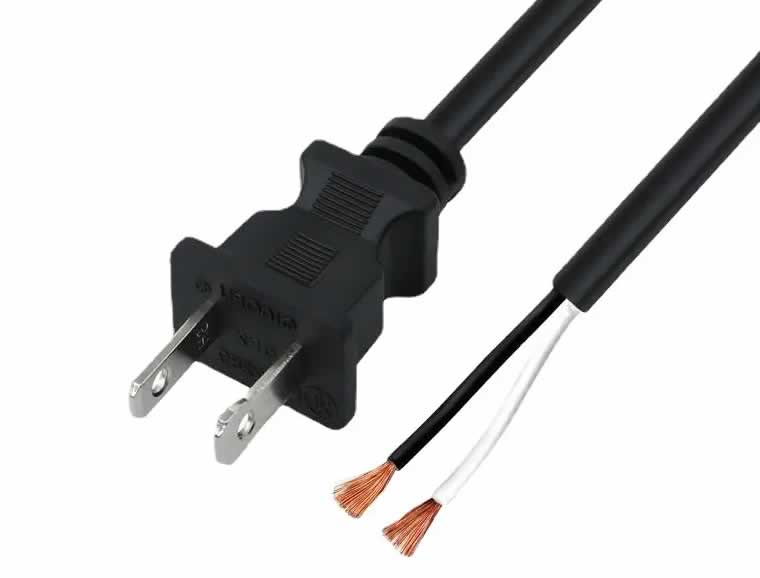

USA NEMA 1-15P Plug, American Power Supply Cords

Plug and Connector Type: A

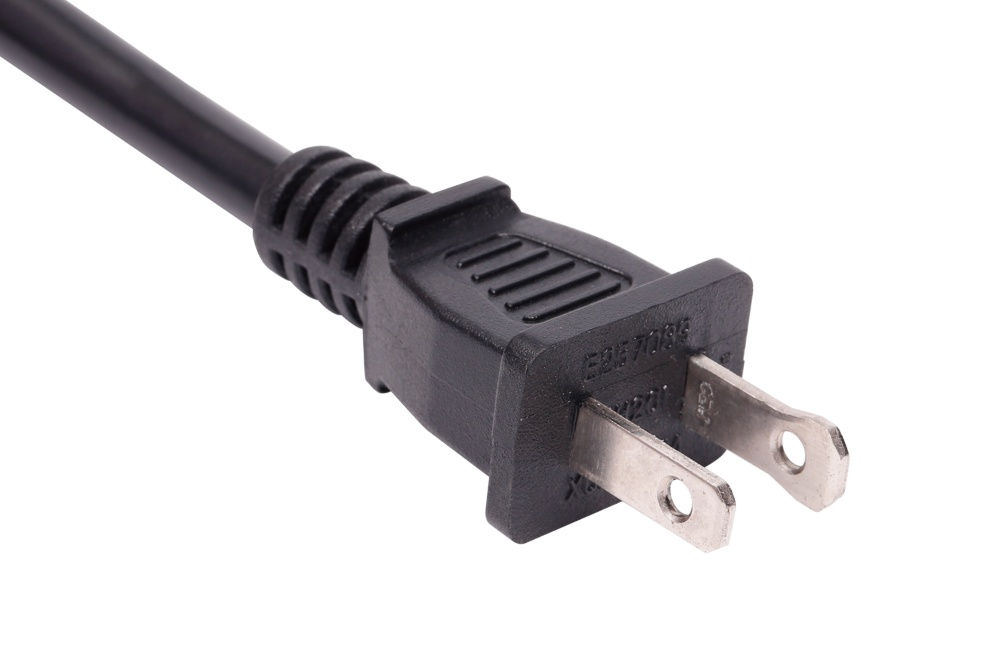

American UL 2 pins NEMA 1-15P plug, American Power Supply Cords with UL Certified List.
Built to NEMA 1-15P CSA CAN/CSA-22.2 No.21-95 standards.
Rated up to 10A, 13A, 15A 125V.

Our USA NEMA 1-15P Plug, American Power Supply Cords products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Get PDF to Print

Specifications

Label

Value
Connector Standard:

NEMA 1-15P CSA CAN/CSA-22.2 No.21-95
Maximum Current rating:

10A, 13A, 15A
Maximum Voltage:

125V
Number of Poles and Wires:

2 poles, 2 wires
Copper Conductor Material:

Oxygen free Copper (OFCU)
Outer Jacket Material:

PVC, Rubber, Halogen-Free, Textile braid
Blade Material:

Nickel coated Brass
Flamability Rating:

UL 94V-0
Color:

Black is standard but any color available
Temperature Rating:

Minus 40C though plus 75C
Approvals:

UL
Environmental Certifications:

RoHS, REACH, PAHs
Testing:

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:

Made In China
Packing:

Standard Export Carton

Available Wire Styles

Gauge/ # Conductors	Cord Type
2Cx18AWG, 2Cx16AWG	SPT-1, SPT-2, SPT-3
2Cx18AWG, 2Cx16AWG	NISPT-1, NISPT-2, NISPT-3
2Cx18AWG, 2Cx16AWG	HPN
2Cx18AWG, 2Cx17AWG, 2Cx16AWG	SVT, SVTO, SVTOO
2Cx18AWG, 2Cx16AWG, 2Cx14AWG	SJT, SJTO, SJTW, SJTOO, SJTOW, SJTOOW
