What is an Australian AS/NZS 3112 to IEC 60320 C7 figure-8 power cord?

This cord has a AS/NZS 3112 mains plug on one end and an IEC 60320 C7 figure-8 connector on the other, rated 2.5A 250V, for two-wire, non-earthed Class II appliances. It is certified to SAA, RCM.

Which devices and appliances use an IEC C7 inlet?

The C7 inlet is common on laptop power supplies, games consoles, TVs, sound bars, radios, chargers and speakers. The C7 connector mates with the C8 appliance inlet.

Is the C7 connector polarized, and is there a grounded version?

The standard C7 is non-polarized and has no earth; a polarized variant exists for some markets. Devices needing an earth use a different connector such as C5 or C13.

Does this cord convert voltage or frequency?

No. It only carries power and does not convert voltage or frequency; the appliance or its adapter must accept the local 250V supply.

Can the opposite end be made to our drawing?

Yes. Send the end drawing and we will strip, tin or terminate the conductors to suit it. Typical finishes are set out in power cord wire end options .

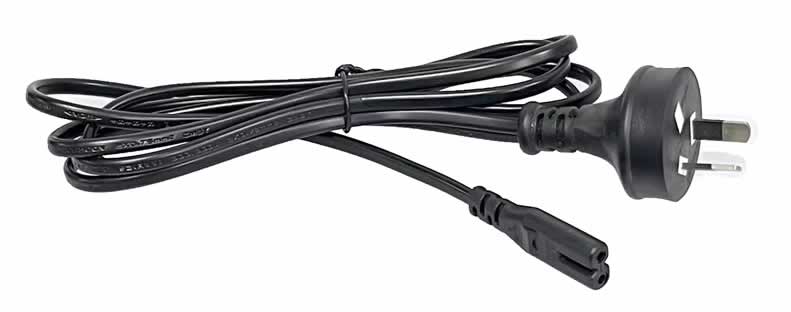

Australia Power Cords, AS/NZS 3112 Plug to IEC 60320 C7 Connector, Type I, 2 poles Plug, SAA, RCM Certified

Australia Power Cords, 2.5A 250V, Type I Plug to IEC 60320 C7 Connector. The Australia AC Cords according to AS/NZS 3112 Standards with SAA, RCM certification. Non-Rewirable Plug 2 poles without Earthing Contact Moulded with Non-rewirable Flexible Cords. This Australia Two prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Australia market. Our Australia Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

Electrical Rating:2.5A

Voltage:250V

Plug / Connector:AS/NZS 3112 to IEC 60320 C7 Connector

Number of Poles and Wires:2 poles, 2 wires

Approvals:SAA, RCM Certified

Samples:Available
Batch lead time:15-20workdays
MOQ:200 - 1000 Pieces
Production capacity:2 million pieces per month
Currency:Export business supports settlement in RMB, USD, EUR and GBP etc.
Export rights:We are a China-based factory with our own export license.

The basic standard used to investigate products in this category is AS/NZS 3112, IEC 60320 C7, and the assembly is supplied under SAA, RCM Certified marking, RoHS and REACH compliant.

Categories: Australia SAA Power Cords

Australia Power Cords, AS/NZS 3112 Plug to IEC 60320 C7 Connector, Type I, 2 poles Plug, SAA, RCM Certified Product Description


Plug / Connector Standard:	AS/NZS 3112 / IEC 60320 C7
Approvals:	SAA, RCM Certified
Maximum Current rating:	2.5A
Maximum Voltage:	250V
Number of Poles and Wires:	2 poles, 2 wires
Indoor/Outdoor:	Both Available
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs, Prop 65
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton, Pallets

Australia Power Cords, AS/NZS 3112 Plug to IEC 60320 C7 Connector, Type I, 2 poles Plug, SAA, RCM Certified Available Cord / Cables Wire Styles

Gauge/ # Conductors	Cord Type
2X0.75mm²	4V-75, DL2 4V-75, H03VVH2-F, H05VV-F
2x1.0mm²	4V-75, DL2 4V-75, H03VVH2-F, H05VV-F

Different length, jacket color or plug? See how to customize a power cord.
