SAA 3 pins AS/NZS 3112 Plug, Australia Power Supply Cords, Plug type: I, Australia SAA Power Cords, AC Cordsets, Plug, Made In China

Australia SAA Power Cords

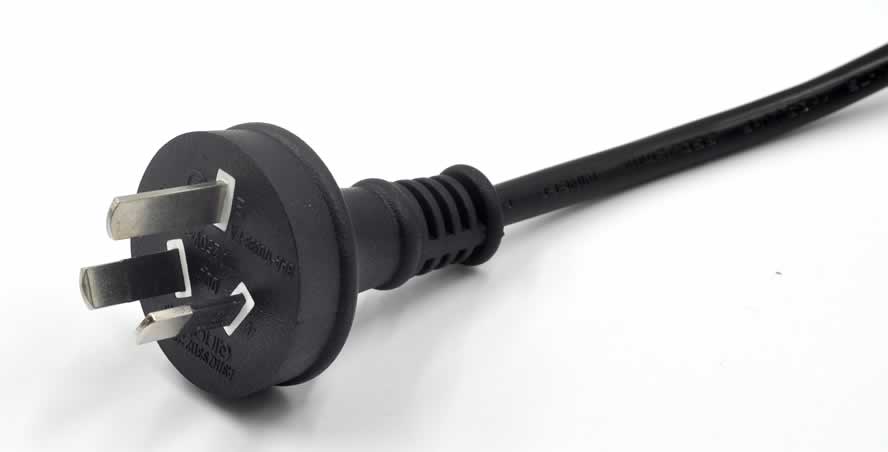

SAA 3 pins AS/NZS 3112 Plug, Australia Power Supply Cords

Plug and Connector Type: I
Australia SAA, RCM 3 pins AS/NZS 3112 plug, Australia Power Supply Cords with SAA, RCM Certified List.
Built to AS/NZS 3112 standards.
Rated up to 10A 250V.

Our SAA 3 pins AS/NZS 3112 Plug, Australia Power Supply Cords products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Get PDF to Print

Specifications

Label

Value
Connector Standard:

AS/NZS 3112
Maximum Current rating:

10A
Maximum Voltage:

250V
Number of Poles and Wires:

3 poles, 3 wires
Copper Conductor Material:

Oxygen free Copper (OFCU)
Outer Jacket Material:

PVC, Rubber, Halogen-Free, Textile braid
Blade Material:

Nickel coated Brass
Flamability Rating:

UL 94V-0
Color:

Black is standard but any color available
Temperature Rating:

Minus 40C though plus 75C
Approvals:

SAA, RCM
Environmental Certifications:

RoHS, REACH, PAHs
Testing:

Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:

Made In China
Packing:

Standard Export Carton

Available Wire Styles

Gauge/ # Conductors	Cord Type
3X0.75mm²	4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
3x1.0mm²	4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
3x1.5mm²	4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
