What is a Japanese Type A two-pin to IEC 60320 C7 figure-8 power cord?

This cord has a Type A two-pin mains plug on one end and an IEC 60320 C7 figure-8 connector on the other, rated 7A, 12A, 15A 125V, for two-wire, non-earthed Class II appliances. It is certified to PSE.

Which devices and appliances use an IEC C7 inlet?

The C7 inlet is common on laptop power supplies, games consoles, TVs, sound bars, radios, chargers and speakers. The C7 connector mates with the C8 appliance inlet.

Is the C7 connector polarized, and is there a grounded version?

The standard C7 is non-polarized and has no earth; a polarized variant exists for some markets. Devices needing an earth use a different connector such as C5 or C13.

Does this cord convert voltage or frequency?

No. It only carries power and does not convert voltage or frequency; the appliance or its adapter must accept the local 125V supply.

What standard does this Japanese cord meet, and what is JIS C 8303?

JIS C 8303 is the national standard the cord is manufactured and tested against; it defines the plug dimensions, pin layout and safety requirements for the target market. The certified cord carries the PSE approval and is supplied to that standard.

What finishes can you supply on the opposite end?

The cable can be left stripped, tinned or crimped with terminals, with the strain relief sized to suit the cord. See power cord wire end options for the differences.

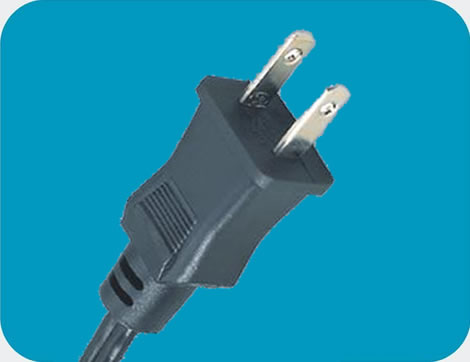

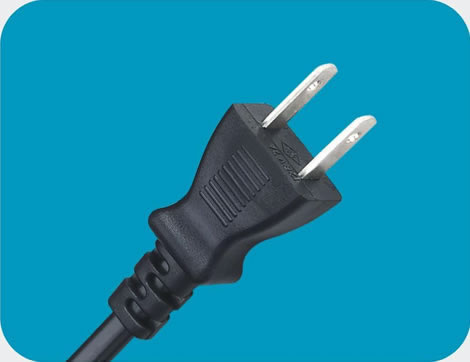

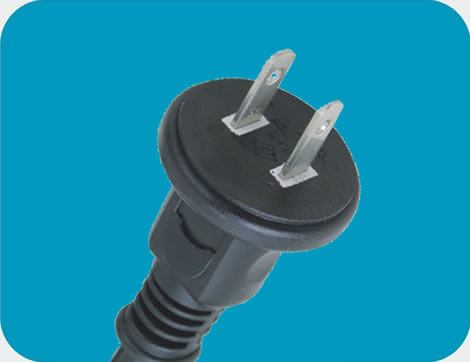

Japan Power Cords, JIS C 8303 Plug to IEC 60320 C7 Connector, Type A, 2 poles Plug, PSE Certified

Japan Power Cords, 7A, 12A, 15A 125V, Type A Plug to IEC 60320 C7 Connector. The Japan AC Cords according to JIS C 8303 Standards with PSE certification. Non-Rewirable Plug 2 poles without Earthing Contact Moulded with Non-rewirable Flexible Cords. This Japan Two prong Power Cords match cable for general applications include Flexible cables with thermoplastic PVC Insulation and Flexible cables with crosslinked elastomeric Rubber Insulation in Japan market. Our Japan Power Cords Products are fully molded with a low profile ergonomic design and RoHS and Reach compliant.

Electrical Rating:7A, 12A, 15A

Voltage:125V

Plug / Connector:JIS C 8303 to IEC 60320 C7 Connector

Number of Poles and Wires:2 poles, 2 wires

Approvals:PSE Certified

Samples:Available
Batch lead time:15-20workdays
MOQ:200 - 1000 Pieces
Production capacity:2 million pieces per month
Currency:Export business supports settlement in RMB, USD, EUR and GBP etc.
Export rights:We are a China-based factory with our own export license.

The basic standard used to investigate products in this category is Japan JIS C 8303, IEC 60320 C7, and the assembly is supplied under PSE Certified marking, RoHS and REACH compliant.

Categories: Japan PSE Power Cords

Japan Power Cords, JIS C 8303 Plug to IEC 60320 C7 Connector, Type A, 2 poles Plug, PSE Certified Product Description


Plug / Connector Standard:	JIS C 8303 / IEC 60320 C7
Approvals:	PSE Certified
Maximum Current rating:	7A, 12A, 15A
Maximum Voltage:	125V
Number of Poles and Wires:	2 poles, 2 wires
Indoor/Outdoor:	Both Available
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs, Prop 65
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton, Pallets

Japan Power Cords, JIS C 8303 Plug to IEC 60320 C7 Connector, Type A, 2 poles Plug, PSE Certified Available Cord / Cables Wire Styles

Gauge/ # Conductors	Cord Type
2x0.75mm² 7A, 125V~	(H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
2x1.25mm² 12A, 125V~	(H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
2x2.0mm² 15A, 125V~	(H)(V)FF, (H)(H)FF, (H)VCTF, (H)VCTFK
