Type: I

Type: Round Earth Pin

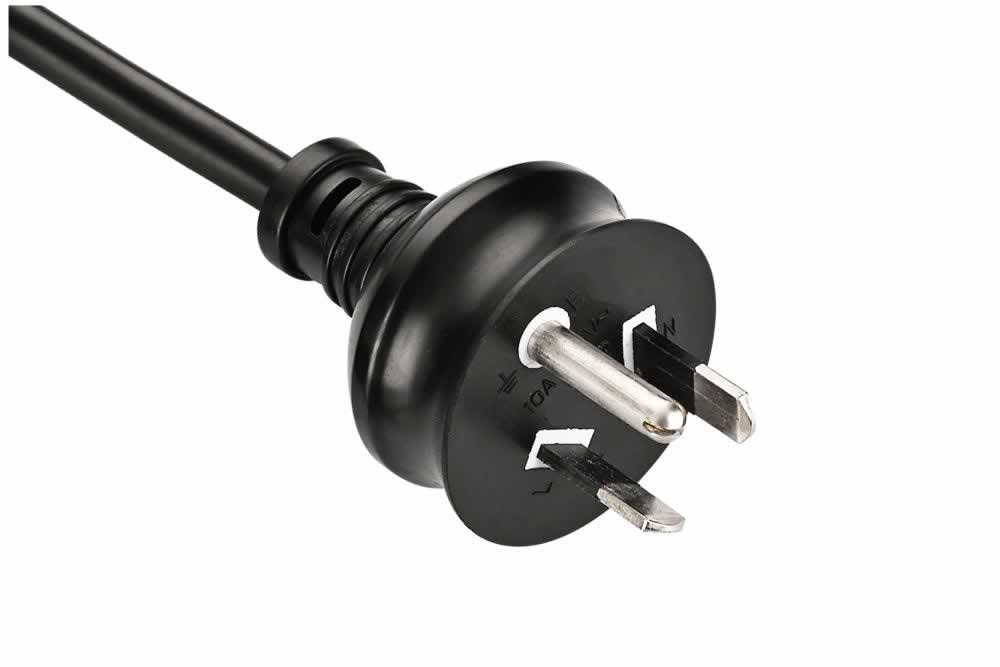

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified

Australia SAA certified 10A 250V power cords featuring the AS/NZS 3112 Type I plug with three pins including a round earth contact. These non-rewirable molded Australian power cords are rated at 10A 250V, ideal for powering home appliances, office equipment, computers, monitors, kitchen devices and consumer electronics across Australia, New Zealand, Fiji, Papua New Guinea and other AS/NZS 3112 markets. The round earth pin design ensures secure grounding and reliable electrical contact. Manufactured with 4V-75, H05VV-F, H05RR-F, H05RN-F and H07RN-F flexible cables in 3x0.75mm², 3x1.0mm² and 3x1.5mm² configurations. SAA and RCM certified with RoHS and REACH compliant materials. Custom lengths, cable colors and connector options available.

Plug Type :I, Round Earth Pin

Approvels :SAA, RCM Certified

Electrical Rating :10A

Voltage :250V

Plug / Connector Standards :AS/NZS 3112

Australia SAA, RCM 3 pins AS/NZS 3112 10A plug, Australia Power Supply Cords with SAA, RCM Certified List.
Built to AS/NZS 3112 standards.
Rated up to 10A 250V.

Categories: Australia SAA Power Cords

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified Product Description


Plug / Connector Standard:	AS/NZS 3112
Maximum Current rating:	10A
Maximum Voltage:	250V
Number of Poles and Wires:	3 poles, 3 wires
Copper Conductor Material:	Oxygen free Copper (OFCU)
Outer Jacket Material:	PVC, Rubber, Halogen-Free, Textile braid
Blade Material:	Nickel Coated Brass
Flamability Rating:	UL 94V-0
Color	Black / White are standards, but any color available customized
Environmental Certifications:	RoHS, Reach, PAHs
Testing:	Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin:	Made In China
Packing:	Standard Export Carton

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified Available Cord / Cables Wire Styles

Gauge/ # Conductors	Cord Type
3X0.75mm²	4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
3x1.0mm²	4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
3x1.5mm²	4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F

Power Cords Terminals Processing Available Opposite End

We have the ability to customize the opposite end of various power cords, stripping cables,
including any terminals, Strain Relief customization and design.
To match the personalization request in field of power cord connectors of each customer.

Remove Outer Jacket

Remove Outer Jacket
Semi-Strip

Remove Outer Jacket
Tooth Terminals

Remove Outer Jacket
Tinned

Cable Clamp
Strain Relief

Remove Outer Jacket
Terminals / Sleeve

Remove Outer Jacket
Round Ring Terminals

Remove Outer Jacket
Connector

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified, also to IEC C5, IEC C13, IEC C14, IEC C15, IEC C19, IEC C20 etc Cord sets connector. All Australia SAA Power Cords can be paired with various IEC 60320 Connectors according to customer requirements.

Lamp Sockets: E12, E14, E26, E27, Hooks, etc for SAA 10A 3 Pins AS/NZS 3112 Round Earth Pin Plug, Australia Power Supply Cords

Packaging Method For Power Cords

Australia SAA Power Cords Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.

Frequently Asked Questions

Common questions about this international power cord

This cord has a moulded AS/NZS 3112 10A rated 10A 250V on a 3-wire (live, neutral, earth) cable. The equipment end is supplied with the jacket removed and all conductors stripped, ready to wire into the appliance or terminal block. It is certified to SAA, RCM.

The finished cord set is certified to SAA, RCM for the target market; test reports and the certificate are available on request, and the cable uses RoHS-, REACH- and PAHS-compliant materials.

Connect live and neutral to the corresponding terminals and the green/yellow conductor to the protective-earth terminal, then secure the strain relief. Ends can be supplied tinned or pre-fitted with terminals.

The 2-wire version has no earth and suits double-insulated Class II appliances; the 3-wire version adds a protective-earth conductor for grounded Class I equipment. Choose the version matching the appliance class and inlet.

Power Cords Supplier, Manufacturer In China

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified Product Description

Plug / Connector Standard:

Maximum Current rating:

Maximum Voltage:

Number of Poles and Wires:

Copper Conductor Material:

Outer Jacket Material:

Blade Material:

Flamability Rating:

Color

Environmental Certifications:

Testing:

Country of Origin:

Packing:

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified Available Cord / Cables Wire Styles

Power Cords Terminals Processing Available Opposite End

Remove Outer Jacket

Remove Outer Jacket Semi-Strip

Remove Outer Jacket Tooth Terminals

Remove Outer Jacket Tinned

Cable Clamp Strain Relief

Remove Outer Jacket Terminals / Sleeve

Remove Outer Jacket Round Ring Terminals

Remove Outer Jacket Connector

Australia Power Cords, AS/NZS 3112 10A Round Earth Pin Plug, Type I, 3 Poles, SAA RCM Certified, also to IEC C5, IEC C13, IEC C14, IEC C15, IEC C19, IEC C20 etc Cord sets connector. All Australia SAA Power Cords can be paired with various IEC 60320 Connectors according to customer requirements.

Packaging Method For Power Cords

Australia SAA Power Cords Packaging with Export Cartons, Pallets, FCL or LCL, Container by Sea or Air.

Related Product

Frequently Asked Questions

What is an Australian AS/NZS 3112 10A power cord with bare, stripped wire ends?

What certification does this Australian power cord carry, and where is it used?

How do I wire the stripped ends, and which conductor is the earth?

What is the difference between the 2-wire and 3-wire versions?
