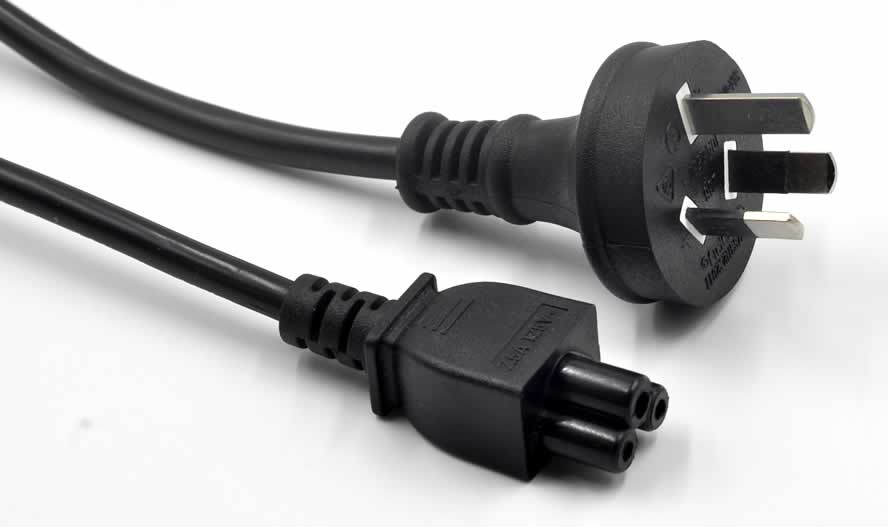

Australia SAA 3 pins AS/NZS 3112 Plug to IEC 60320 C5 Laptop Connector, Australia Power Supply Cords, Plug type: I,C5, Australia SAA Power Cords Supplier, Made In China

Australia SAA 3 pins AS/NZS 3112 Plug to IEC 60320 C5 Laptop Connector, Australia Power Supply Cords

Australia SAA 3 pins AS/NZS 3112 Plug to IEC 60320 C5 Laptop Connector, Australia Power Supply Cords

Plug and Connector Type: I,C5
Australia SAA, RCM 3 pins AS/NZS 3112 plug to IEC 60320 C5 Laptop Connector, Australia Power Supply Cords with SAA, RCM Certified List.
Built to AS/NZS 3112, IEC 60320 C5 standards.
Rated up to 10A 250V.

Our Australia SAA 3 pins AS/NZS 3112 Plug to IEC 60320 C5 Laptop Connector, Australia Power Supply Cords products are fully molded with a low profile ergonomic design and RoHS, REACH and PAHS compliant.

Get PDF to Print

Australia SAA 3 pins AS/NZS 3112 Plug to IEC 60320 C5 Laptop Connector, Australia Power Supply Cords Specifications

  • Label
    Value
  • Connector Standard:
    AS/NZS 3112, IEC 60320 C5
  • Maximum Current rating:
    10A
  • Maximum Voltage:
    250V
  • Number of Poles and Wires:
    3 poles, 3 wires
  • Copper Conductor Material:
    Oxygen free Copper (OFCU)
  • Outer Jacket Material:
    PVC, Rubber, Halogen-Free, Textile braid
  • Blade Material:
    Nickel coated Brass
  • Flamability Rating:
    UL 94V-0
  • Color:
    Black is standard but any color available
  • Temperature Rating:
    Minus 40C though plus 75C
  • Approvals:
    SAA, RCM
  • Environmental Certifications:
    RoHS, REACH, PAHs
  • Testing:
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin:
    Made In China
  • Packing:
    Standard Export Carton

Australia SAA 3 pins AS/NZS 3112 Plug to IEC 60320 C5 Laptop Connector, Australia Power Supply Cords Available Wire Styles

Gauge/ # Conductors Cord Type
3X0.75mm² 4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
3x1.0mm² 4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
3x1.5mm² 4V-75, H05VV-F, H05RR-F, H05RN-F, H07RN-F
