What is an IEC C1/C2 coupler?

The C1 connector and C2 inlet form a 2-pole, unearthed IEC 60320 coupler rated up to 2.5 A at 250 V and 70 C. It is one of the earliest and least common IEC couplers, historically used on small double-insulated (Class II) appliances where no protective earth is required, and it has largely been superseded by the C7/C8 figure-8 coupler.

What is the difference between C1/C2 and C7/C8 connectors?

Both are 2-pole unearthed, 2.5 A couplers for Class II equipment, but the C1/C2 is an older, uncommon outline while the C7/C8 figure-8 connector is the widely adopted modern equivalent used on TVs, routers and chargers. New designs almost always specify C7/C8 rather than C1/C2.

Is the C1 connector earthed and what current does it carry?

No. The C1/C2 coupler has only two current-carrying contacts and no earth pin, and it is rated 2.5 A at 250 V. It is therefore suitable only for low-power double-insulated devices and must not be used where an equipment protective earth is required.

How do I identify a C1 connector on an old appliance?

A C2 inlet is a small two-slot, non-polarized rectangular inlet on an older Class II device, distinct from the figure-8 shape of a C8 inlet and the three-slot triangular C6/C14 inlets. If the device is still in service, confirm the rating plate and replace the cord with a correctly rated C1 or modern C7 equivalent.

Can you manufacture C1/C2 or equivalent low-power cords?

Yes. We can produce C1/C2 cord sets or, more commonly for new products, the C7/C8 equivalent, with the required regional wall plug, cable length and color under UL, VDE or other certification. Contact us with the device rating; MOQ is 200-1000 pieces and samples are available in 7-15 days.

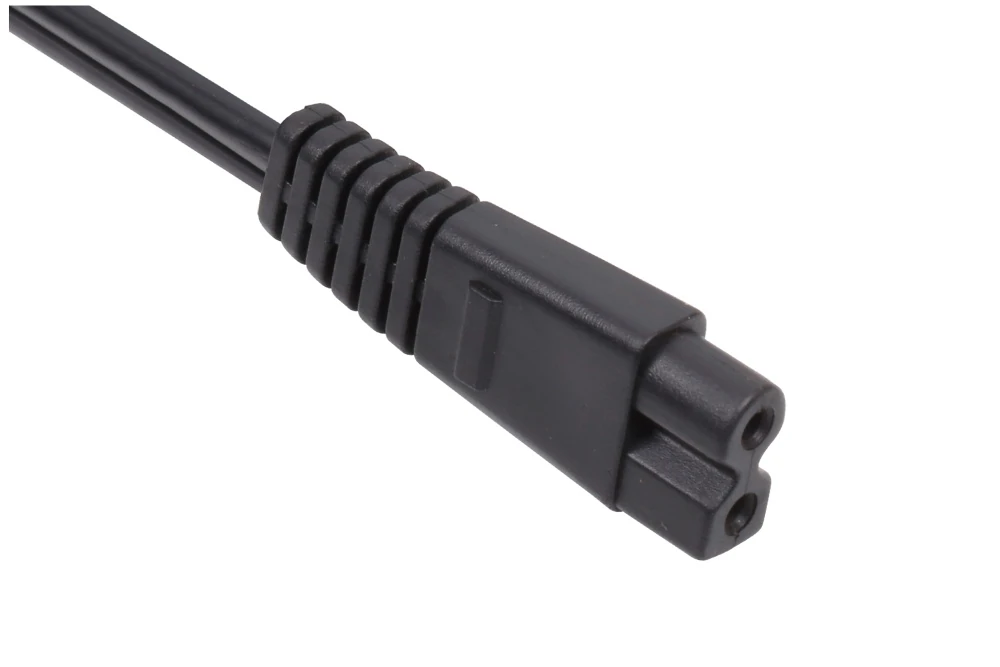

IEC 60320 C1 Power Cords & Custom Connectors – Straight, Angled, Locking

IEC 60320 Diagram

IEC 60320 C1 power cords and connectors in straight, right-angle, and locking designs. Custom OEM/ODM available for shavers, chargers, and low-power personal care devices. These IEC 60320 C1 connectors are 2.5A, 5A rated and tailored to your exact specs.
