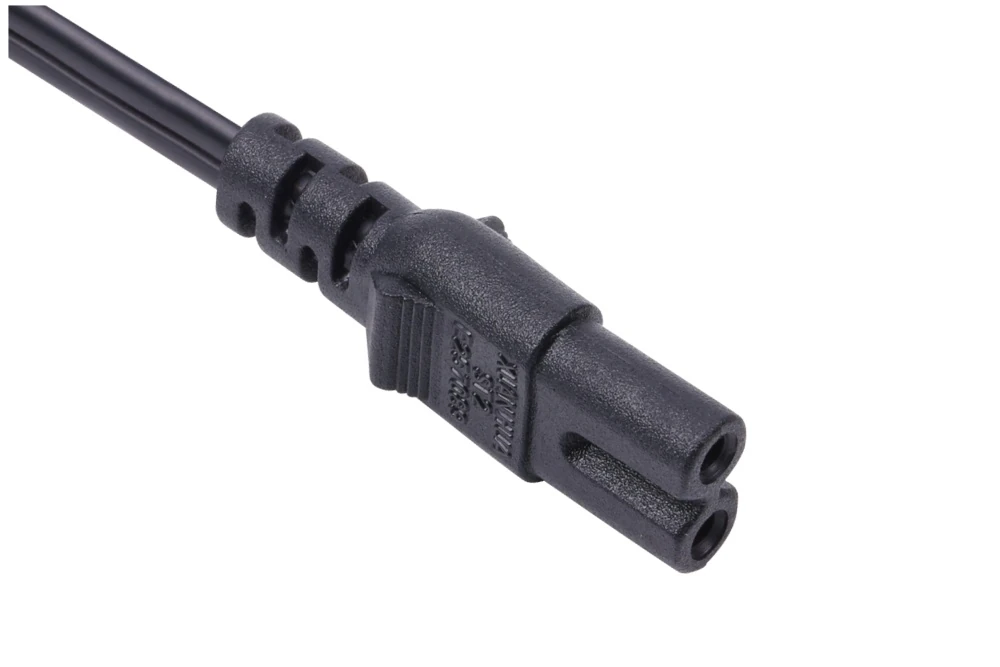

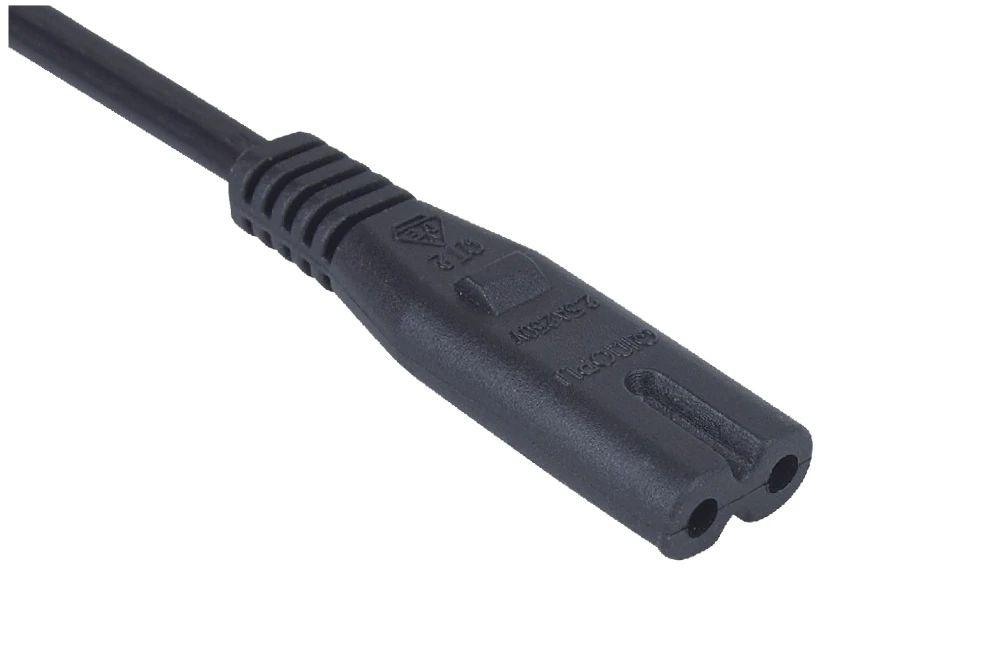

What is an IEC C7 figure-8 connector?

The C7 is a 2-pole, unearthed female connector with a figure-8 outline rated up to 2.5 A at 250 V, mating with a C8 inlet. It is widely used on double-insulated (Class II) consumer electronics such as televisions, routers, game consoles, radios, laptop chargers and small appliances that do not require a protective earth.

What is the difference between polarized and non-polarized C7 connectors?

A standard C7/C8 is non-polarized with two identical rounded sides. A polarized C7 has one squared/flat side so it can only insert one way into a polarized C8 inlet, commonly used in Japan and North America to maintain line/neutral orientation. Check the device inlet before choosing which version to order.

Can a C7 cord replace a C5 or C13 cord?

No. The C7 is a 2-pole unearthed 2.5 A connector and only fits a C8 inlet; it cannot mate with the three-pin earthed C6 (C5) or C14 (C13) inlets, and it must not be used on equipment requiring an earth. Use the connector that matches the inlet and safety class of the device.

Which appliances typically ship with a C7 power cord?

Figure-8 C7 cords are supplied with TVs and monitors, set-top boxes, games consoles, audio and streaming devices, routers, modems, radios, some laptop adapters and kitchen smallgoods marked as double-insulated. The low 2.5 A rating and Class II construction define the application.

Can I order C7 figure-8 cords with US, EU or UK wall plugs?

Yes. We manufacture C7 cord sets terminated to NEMA 1-15P, CEE 7 Europlug, BS 1363 and other national plugs, with polarized or non-polarized C7, custom lengths and colors, certified to UL/VDE or regional standards. MOQ is 200-1000 pieces with 7-15 day samples.

IEC 60320 C7 Power Cords & Custom Connectors – Straight, Angled, Locking

IEC 60320 Diagram

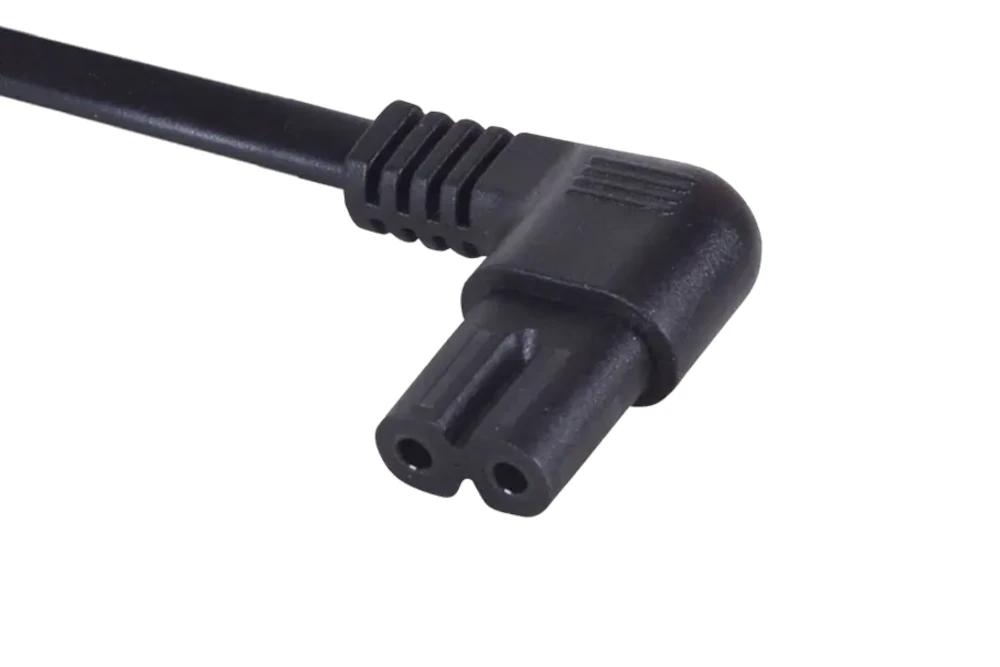

IEC 60320 C7 power cords and connectors in straight, right-angle, and locking designs. Custom OEM/ODM available for audio equipment, power adapters, and portable electronics. These IEC 60320 C7 connectors are 2.5A, 7A rated and tailored to your exact specs.
