IEC 60320 C20 Power Cords & Custom Connectors – Straight, Angled, Locking

IEC 60320 Diagram
IEC 60320 C1 Power CordsIEC C1
IEC 60320 C5 Power CordsIEC C5
IEC 60320 C7 Power CordsIEC C7
IEC 60320 C9 Power CordsIEC C9
IEC 60320 C13 Power CordsIEC C13
IEC 60320 C14 Power CordsIEC C14
IEC 60320 C15 Power CordsIEC C15
IEC 60320 C17 Power CordsIEC C17
IEC 60320 C18 Power CordsIEC C18
IEC 60320 C19 Power CordsIEC C19
IEC 60320 C20 Power CordsIEC C20
IEC 60320 C21 Power CordsIEC C21
IEC 60320 C22 Power CordsIEC C22

IEC 60320 C20 Power Cords Connector

- IEC 60320 Standards C20 Connector International Power Cords

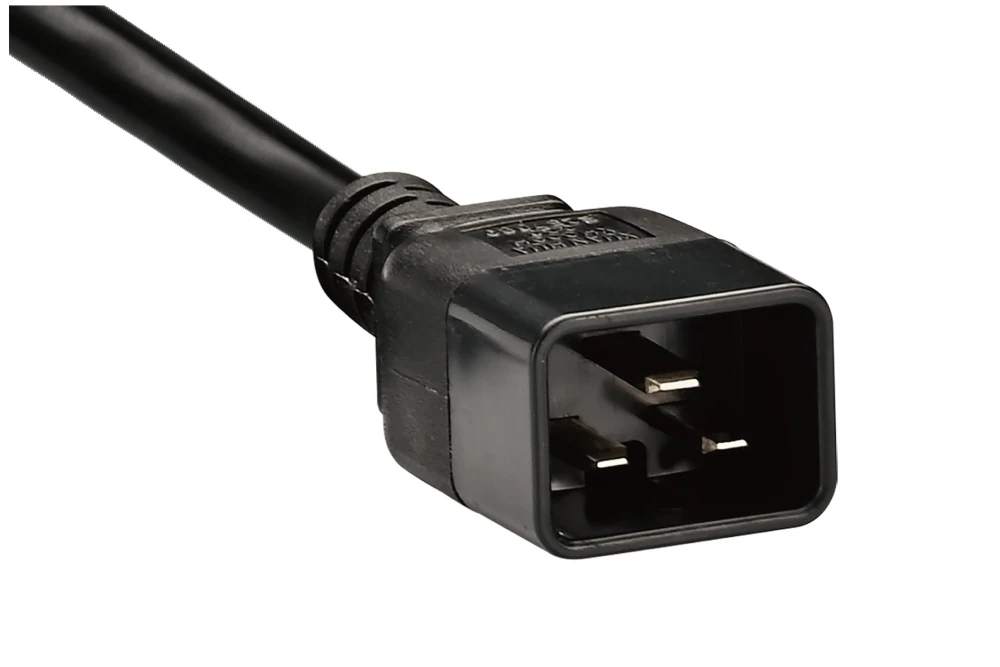

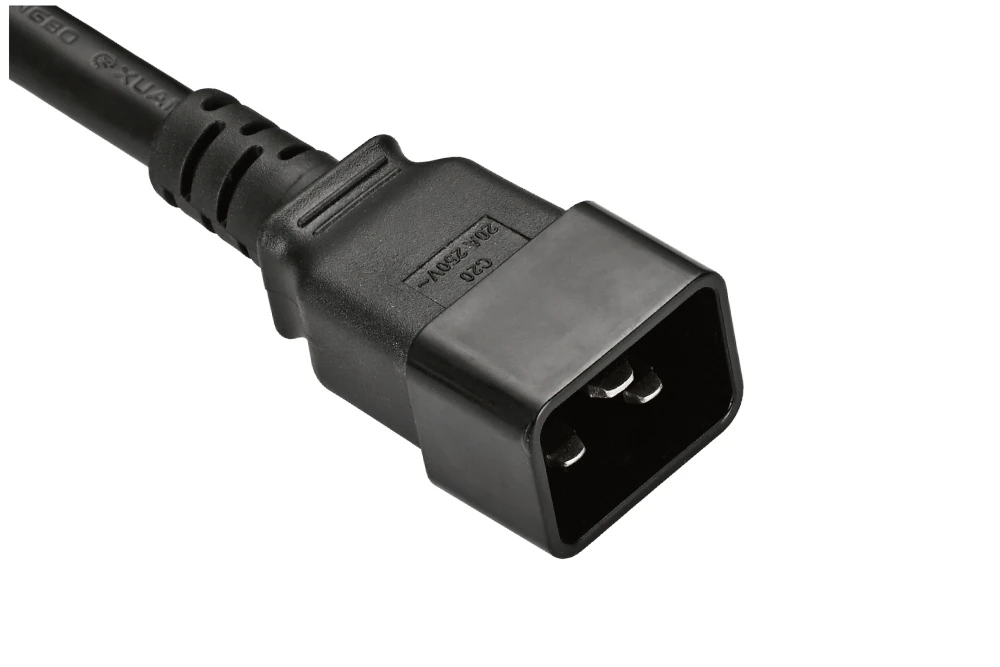

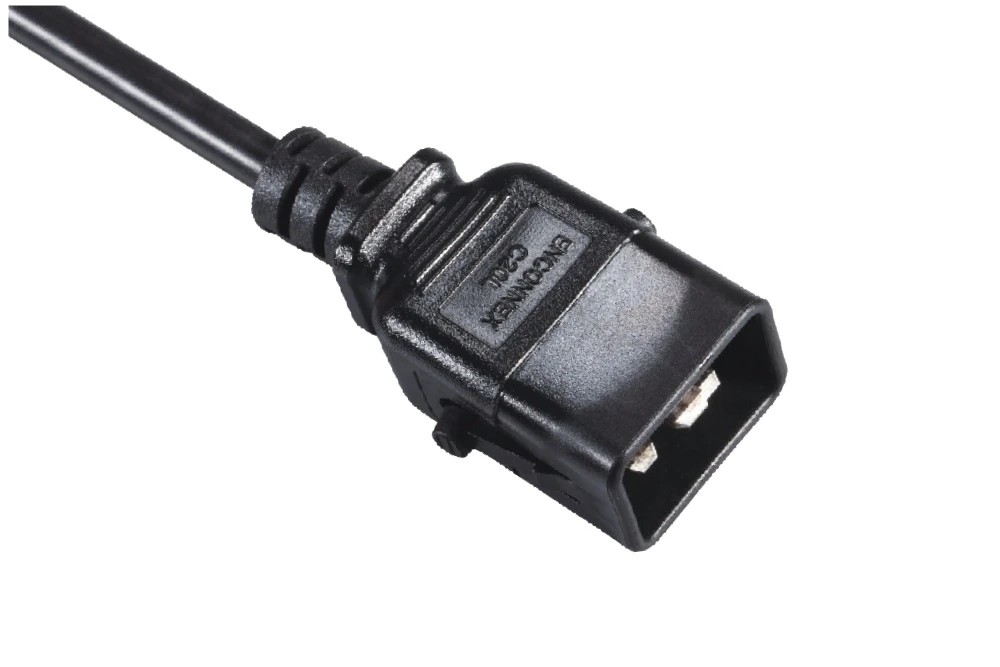

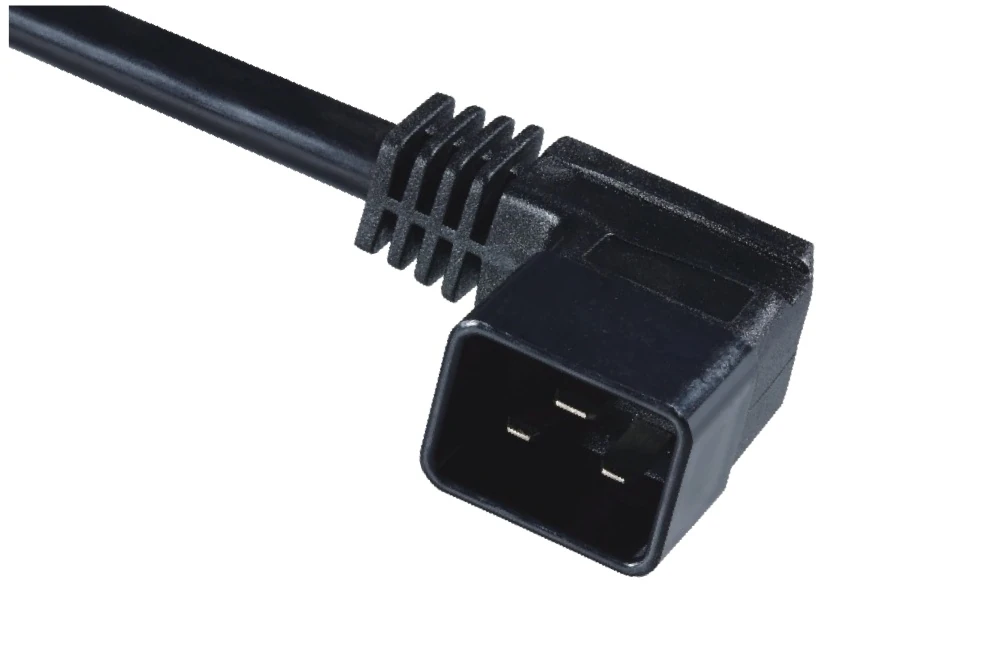

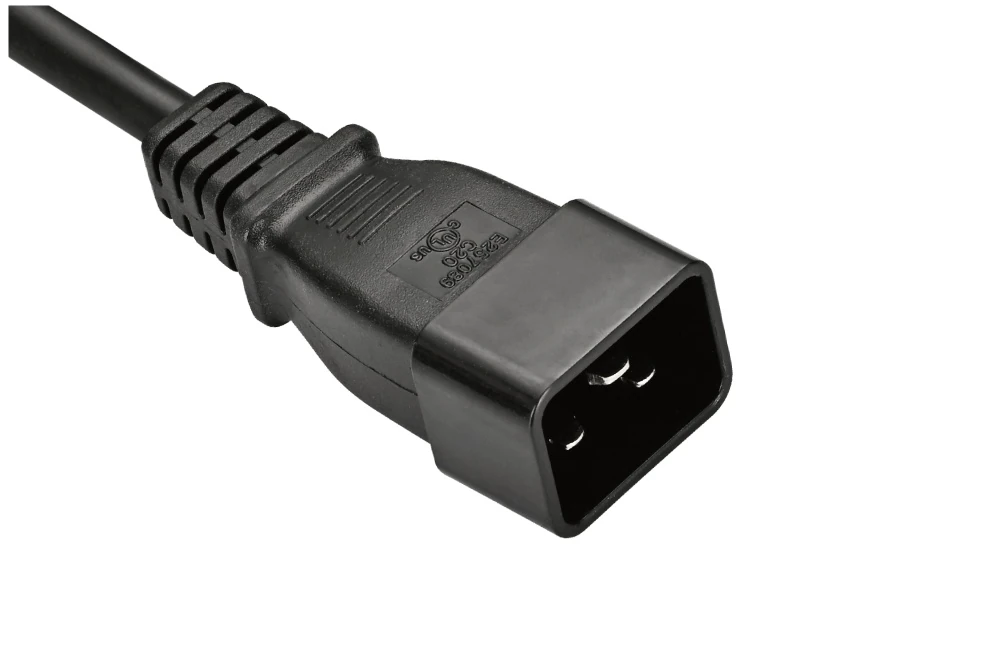

IEC 60320 C20 power cords and connectors in straight, right-angle, and locking designs. Custom OEM/ODM available for servers, PDUs, data centers, and industrial equipment. These IEC 60320 C20 connectors are 16A/20A rated and tailored to your exact specs.
For IEC 60320 C20 Power Cords Connector and other specs not shown above, send the drawing or part number through the contact page and we will reply with price and lead time.
Need the same cord in a different length, plug, cable or color, or with a different wire end? See how to customize a power cord and power cord wire end options.
Contact with Power Cords

Have any Question?

Power Cord & Power Connectors Manufacturer With RoHS, Reach, PAHs Compliant.

Frequently Asked Questions

Common questions about IEC 60320 C20 Power Cords Connector

The C20 is the 3-pole earthed male appliance inlet rated 16 A at 250 V (up to 20 A at 125 V) that receives a C19 connector. It is the high-current counterpart of the C14, mounted on servers, UPS units, high-power PDUs, storage systems and industrial equipment, and is also made as a panel-mount or inline male connector.

Yes. The female C19 connector on the cord is the designated mate for the male C20 inlet on the equipment. The larger, keyed C19/C20 outline prevents the 10 A C13 from being used on these 16 A-20 A circuits, protecting against overheating.

Yes. C20 male connectors are widely used on the equipment end of PDU power cords and jumpers, often paired with a C19 female connector or a NEMA locking wall plug (for example C20-to-C19 rack cords or NEMA L6-30P-to-C19 whips). Confirm the outlet type and current rating when specifying the jumper.

The C20 inlet is rated 16 A at 250 V internationally and up to 20 A in some 125 V applications, with a standard 70 C temperature condition. For heat-generating high-current equipment requiring a hot-condition coupler, the C22 inlet (paired with C21) is used instead.

Yes. We offer panel-mount and inline C20 connectors plus C19-to-C20 and wall-plug-to-C19 cord sets in 1.5-2.5 mm2 (14-10 AWG) cable with UL/cUL, ETL or VDE certification, custom lengths and locking options. MOQ is 200-1000 pieces; samples in 7-15 days.
